Manufacturer Part #
UP2-101-R

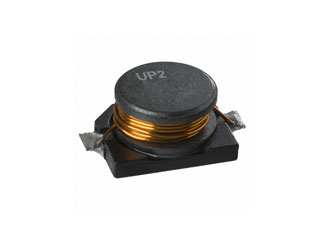

UP Series 100 uH ±20 % Tolerance 1.4 A Unshielded Low Profile Power Inductor
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Eaton | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:600 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2430 | ||||||||||
Product Specification Section
Eaton UP2-101-R - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=UP2-101-R&field4=Eaton&field18=https://p1na.futureelectronics.com/p/5058714
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=UP2-101-R&field4=Eaton&field18=https://p1na.futureelectronics.com/p/5058714
Eaton UP2-101-R - Technical Attributes
Attributes Table
| Rated Current-Max: | 1.4A |
| Tolerance (%): | ±20% |
| Shielding: | No |
| DC Resistance: | 277.2mΩ |
| Core Material: | Ferrite |
| Test Frequency: | 100kHz |
| Operating Temp Range: | -40°C to +85°C |
| Storage Temperature Range: | -40°C to +125°C |
| No of Terminals: | 2 |
| Dimension: | L 13.74mm x W 8.76mm x H 5.86mm |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
1,800
USA:
1,800
On Order:
0
Factory Lead Time:
15 Weeks
Quantity
Unit Price
600
$1.50
1,200+
$1.48
Product Variant Information section
Available Packaging
Package Qty:
600 per Reel
Mounting Method:
Surface Mount
