Manufacturer Part #
1-1825027-4

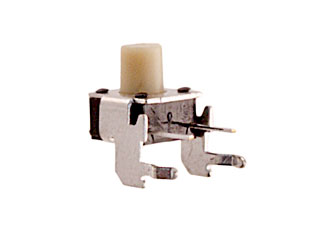

Alcoswitch Series SPST-NO 24 V 160 g PCB Through Hole Tactile Switch
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:20000 per Box | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
TE Connectivity 1-1825027-4 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
File
Date
Specification Change
10/27/2023 Details and Download
Description of ChangesTE has decided to make an upgrade on the Cold temperature tolerance for the listed part numbers. This does not change anything in the actual part, this upgrade was tested with satisfactory results. It was: Storage temperature:-30 C, Operating Temperature: -20 C. Now is: Storage temperature:-40 C, Operating Temperature: -40 C.Reason for Changes:To increase Customer Satisfaction.
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-1825027-4&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/5070706
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1-1825027-4&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/5070706
TE Connectivity 1-1825027-4 - Technical Attributes
Attributes Table
| Switch Operation: | Off-Mom |
| Circuitry: | SPST N.O. |
| Voltage Rating: | 24V |
| Current Rating: | 50mA |
| Insulation Resistance: | 100MΩ |
| Contact Material: | Copper Alloy |
| Operating Force: | 160gf |
| Contact Plating: | Silver |
| Actuator Style: | Round |
| Termination Style: | PCB |
| Dielectric Withstanding Voltage: | 500V |
| Operating Temperature: | -35°C to +85°C |
| Dimension: | H 7.01mm x L 7.11mm x W 10.16mm |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
21 Weeks
Quantity
Unit Price
1
$0.106
250
$0.104
500
$0.102
1,500
$0.0985
3,000+
$0.0934
Product Variant Information section
Available Packaging
Package Qty:
20000 per Box
