Manufacturer Part #
74AHCT14D,118

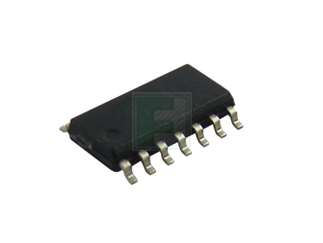

74AHCT Series 5.5 V Inverter SMT Complementary Shifter - SOIC-14
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Nexperia | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2500 per Reel Package Style:SOIC-14 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Nexperia 74AHCT14D,118 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=74AHCT14D,118&field4=Nexperia&field18=https://p1na.futureelectronics.com/p/5410261
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=74AHCT14D,118&field4=Nexperia&field18=https://p1na.futureelectronics.com/p/5410261
Nexperia 74AHCT14D,118 - Technical Attributes
Attributes Table
| Logic Circuit: | Schmitt Trigger |
| Family: | A/HC/T/U |
| No of Functions / Channels: | 6 |
| Supply Voltage-Nom: | 4.5V to 5.5V |
| Power Dissipation: | 500mW |
| Propagation Delay: | 5.4ns |
| Operating Temperature: | -40°C to +125°C |
| Capacitance: | 3pF |
| No of Inputs: | 6 |
| No of Outputs: | Six |
| High Level Output Current: | -8mA |
| Low Level Output Current: | 8mA |
| No of Pins: | 14 |
| Quiescent Current: | 2µA |
| Moisture Sensitivity Level: | 1 |
| Package Style: | SOIC-14 |
| Mounting Method: | Surface Mount |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
N/A
Quantity
Unit Price
2,500
$0.215
7,500+
$0.21
Product Variant Information section
Available Packaging
Package Qty:
2500 per Reel
Package Style:
SOIC-14
Mounting Method:
Surface Mount
