Manufacturer Part #
AZ2800-2A-120A5

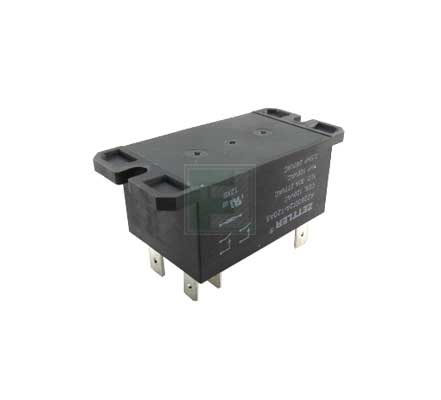

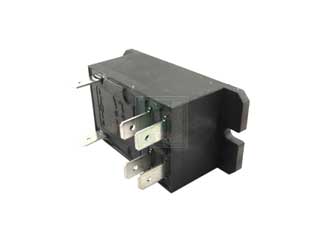

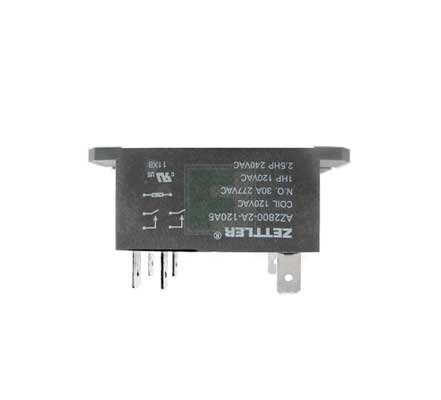

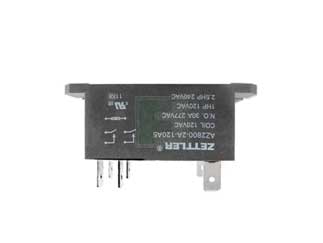

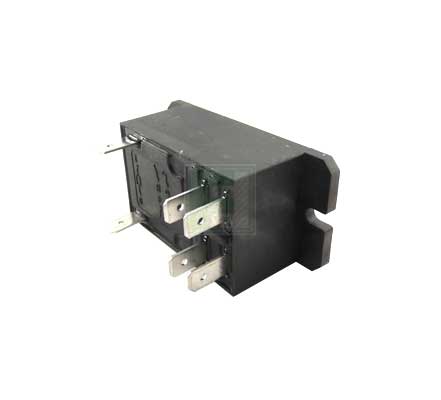

AZ2800 Series 30 A DPST (2 Form A) 120 VAC Chassis Mount Miniature Power Relay
| | |||||||||||
| | |||||||||||
| Mfr. Name: | American Zettler | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:20 per Tray Mounting Method:Chassis Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
American Zettler AZ2800-2A-120A5 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=AZ2800-2A-120A5&field4=American Zettler&field18=https://p1na.futureelectronics.com/p/5429865
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=AZ2800-2A-120A5&field4=American Zettler&field18=https://p1na.futureelectronics.com/p/5429865
American Zettler AZ2800-2A-120A5 - Technical Attributes
Attributes Table
| Relay Type: | Power |
| Contact Form: | DPST (2 Form A) |
| Nominal Coil Voltage: | 120V |
| Contact Current-Max: | 30A |
| Coil Resistance: | 830Ω |
| Switching Voltage: | 30V |
| Contact Material: | Silver Cadmium Oxide / Silver Tin Oxide (AgCdo/AgsO2) |
| Operating Temp Range: | -40°C to +85°C |
| Insulation Resistance: | 1GΩ |
| Height - Max: | 1.04mm |
| Termination Style: | Quick Connect |
| No of Terminals: | 8 |
| Mounting Method: | Chassis Mount |
Pricing Section
Global Stock:
0
USA:
0
Factory Lead Time:
N/A
Quantity
Unit Price
1
$4.94
5
$4.86
20
$4.75
50
$4.67
125+
$4.54
Product Variant Information section
Available Packaging
Package Qty:
20 per Tray
Mounting Method:
Chassis Mount
