Manufacturer Part #
SM02(8.0)B-BHS-1-TB(LF)(SN)

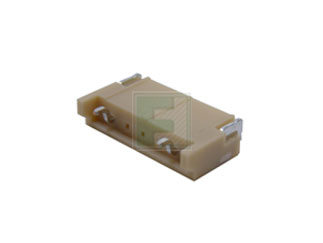

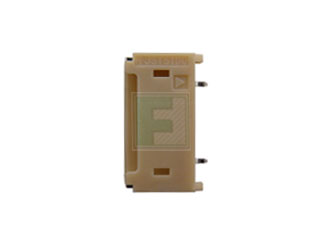

BH Series 2 Position 8 mm Pitch Surface Mount Straight Shrouded Header Connector
| | |||||||||||
| | |||||||||||
| Mfr. Name: | JST | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2327 | ||||||||||
Product Specification Section
JST SM02(8.0)B-BHS-1-TB(LF)(SN) - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SM02(8.0)B-BHS-1-TB(LF)(SN)&field4=JST&field18=https://p1na.futureelectronics.com/p/5636238
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SM02(8.0)B-BHS-1-TB(LF)(SN)&field4=JST&field18=https://p1na.futureelectronics.com/p/5636238
JST SM02(8.0)B-BHS-1-TB(LF)(SN) - Technical Attributes
Attributes Table
| No of Positions: | 2 |
| Pitch: | 8 mm |
| Style/Orientation: | Straight Header/Plug |
| Termination: | Crimp |
| Operating Temp Range: | -25°C to +85°C |
| Voltage Rating: | 600V |
| Current Rating: | 1A |
| Contact Plating: | Tin |
| Material: | Polyamide |
| No of Rows: | 1 |
| Gender: | Male |
| Type: | Shrouded Header |
| Mating Type: | Detent Lock |
| Color: | Natural |
| Insulation Resistance: | 1000MΩ |
| Mounting Method: | Surface Mount |
Features & Applications
The SM02(8.0)B-BHS-1-TB(LF)(SN) is a part of BH Series 2 position 8.0 mm pitch Surface mount Low profile Shrouded Header Wire to Board Crimp style Connectors.
It is a low Profile connectors with high withstanding voltage, designed for connecting liquid crystal display back light lamps to their starters
Features:
- Low profile
- SMT configuration
- Applicable to special wires
- Headers with locating bosses
- Housing Lock also serves as polarizing device
Product Specifications:
- Pitch: 8.0 mm
- Current rating: 1.0 A
- Voltage rating: 600 V
- PC board mounting direction: Side entry
