Manufacturer Part #
PH1-04-UA

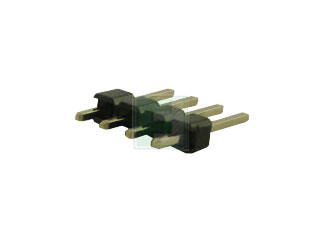

PH Series 4 Position 2.54 mm Single Row Straight Pin Header
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Adam Tech | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Bag | ||||||||||
| Date Code: | |||||||||||
Adam Tech PH1-04-UA - Product Specification
Shipping Information:
ECCN:
PCN Information:
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=PH1-04-UA&field4=Adam Tech&field18=https://p1na.futureelectronics.com/p/6002541
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=PH1-04-UA&field4=Adam Tech&field18=https://p1na.futureelectronics.com/p/6002541
Adam Tech PH1-04-UA - Technical Attributes
| No of Positions: | 4 |
| Pitch: | 2.54 mm |
| Style/Orientation: | Straight Header/Plug |
| Termination: | Through Hole |
| Operating Temp Range: | -40°C to +105°C |
| Voltage Rating: | 250V |
| Current Rating: | 3A |
| Contact Plating: | Gold |
| Material: | Polybutylene Terephthalate |
| No of Rows: | 1 |
| Type: | Pin Headers |
| Color: | Black |
| Insulation Resistance: | 5000MΩ |
Features & Applications
The PH1-04-UA is a part of PH1 series 4 position straight header. It has an operating temperature ranging from -40°C to +105°C.
The PH Series .100" Pin Headers offer a full range headers in a variety of configurations including Single, Dual and Three rows, Straight or Right Angle in Thru-Hole or SMT mounting. Their close tolerance .025" sq. posts are smoothly finished and taper tipped to eliminate insertion damage to the PCB or mating connector.
Features:
- Single, Dual or Three Row
- Tin, gold or selective gold plating options
- Thru-hole or SMT mounting
- Stacked and Custom length versions available
- Versatile Breakaway design
- Hi Temp Insulator available
View the complete PH1 series of pin header
Available Packaging
Package Qty:
1000 per Bag
