B9B-XH-A(LF)(SN)

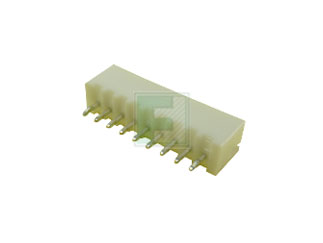

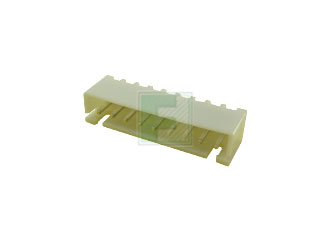

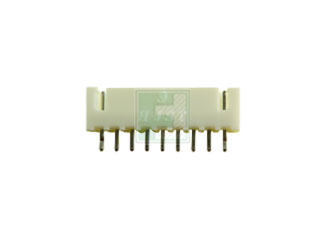

XH Series 9 Position 2.5 mm Pitch Through Hole Top Entry Shrouded Header
| | |||||||||||
| | |||||||||||
| Mfr. Name: | JST | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:250 per Box Mounting Method:Through Hole | ||||||||||
| Date Code: | 2148 | ||||||||||
Product Specification Section
JST B9B-XH-A(LF)(SN) - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=B9B-XH-A(LF)(SN)&field4=JST&field18=https://p1na.futureelectronics.com/p/6085005
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=B9B-XH-A(LF)(SN)&field4=JST&field18=https://p1na.futureelectronics.com/p/6085005
JST B9B-XH-A(LF)(SN) - Technical Attributes
Attributes Table
| No of Positions: | 9 |
| Pitch: | 2.5 mm |
| Style/Orientation: | Straight Header/Plug |
| Termination: | Crimp |
| Operating Temp Range: | -25°C to +85°C |
| Voltage Rating: | 250V |
| Current Rating: | 3A |
| Contact Plating: | Tin |
| Material: | Polyamide |
| No of Rows: | 1 |
| Gender: | Male |
| Type: | Shrouded Header |
| Mating Type: | Detent Lock |
| Color: | Natural |
| Insulation Resistance: | 1000MΩ |
| Mounting Method: | Through Hole |
Features & Applications
The B9B-XH-A(LF)(SN) is a part of XH series with a mounting height of 9.8 mm and it is applicable to PC Board thickness of 1.6 mm, this connector is also known as Disconnectable Crimp Connector. It has an Operating Temperature range of -25° C to +85° C.
Product Features:
- Original folded beam contact
- Box-shaped shrouded header
- Header with a boss
- Interchangeability
- Conforming to the HA terminal
- Current Rating : 3 A AC, DC(AWG #22)
- Voltage Rating : 250 V AC, DC
- Contact Resistance : Initial value/10 mO max.
- Insulation Resistance : 1000 MO min
- Withstanding voltage : 1000 V AC/minute
- Applicable wire : AWG #30 to #22
