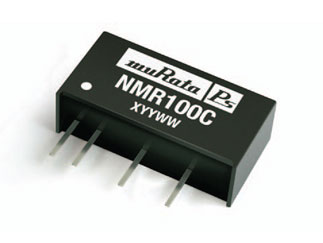

Murata Power Solutions | NMR101C

The NMR101C is a part of NMR series industrial temperature range DC/DC converters are the standard building blocks for on-board distributed power systems.

They are ideally suited for providing single rail supplies on primarily digital boards with the added benefi t of galvanic isolation to reduce switching noise. Surface mount technology and advanced packaging materials produce rugged reliable performance over an extended temperature range from -40ºC
to 85ºC.

Features:

• RoHS compliant
• 1 kVDC isolation
• Effi ciency up to 80%
• Wide temperature performance at full 1 watt load, –40°C to 85°C
• Power density up to 0.90 W/cm3
• UL 94V-0 package material
• Footprint from 1.17 cm2
• Industry standard pinout
• 5 V, 12 V, 15 V & 24 V input
• 5 V, 12 V & 15 V output
• No heatsink required
• Internal SMD construction
• Fully encapsulated with toroidal magnetics
• Custom solutions available
• No electrolytic or tantalum capacitors
