TE Connectivity | 323994

Manufacturer Part #

323994

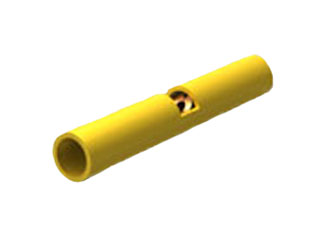

PIDG 26-24 AWG Yellow Copper Unsealed Closed Barrel Butt Splice

ECAD Model:
Mfr. Name: TE Connectivity
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
TE Connectivity 323994 - Technical Attributes
Attributes Table
Style: Insulation Support
Type: Butt Splice
Wire Gauge: AWG 26-22
Color: Yellow
Contact Material: Copper
Contact Plating: Tin
Gender: Female
Operating Temp Range: 105°C
Features & Applications

The PIDG Series is a 26-24 AWG Yellow Copper Unsealed Closed Barrel Butt Splice

Features:

  • Product Type = Splice
  • Sealed = No
  • Splice Type = Butt
  • Body Style = PIDG
  • Insulation = Yes
  • Insulation Support = Insulation Support
  • Insulation Diameter (mm [in]) = 2.08 [.082] Max.
  • Material = Copper
  • Finish = Tin
  • Color = Yellow
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
N/A
Minimum Order:
5000
Multiple Of:
5000
Total
$4,650.00
USD
Quantity
Unit Price
20
$1.05
50
$1.02
150
$0.995
300
$0.98
1,000+
$0.93
Product Variant Information section
Related Products
323994
323994
TE Connectivity
PIDG 26-24 AWG Yellow Copper Unsealed Closed Barrel Butt Splice
As low as: $0.93 (USD)
5958194
641321-1
TE Connectivity
PIDG Series Faston 26-24 AWG Straight Insulated Quick Disconnect Receptacle
As low as: $0.305 (USD)
52189
52189
TE Connectivity

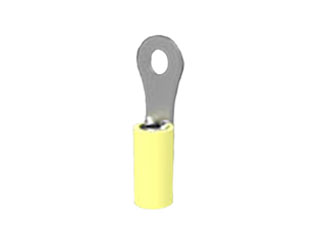

PIDG 26-24 AWG Straight Closed Barrel Ring Tongue Terminal
