Manufacturer Part #
CMD67-21VYC/TR8

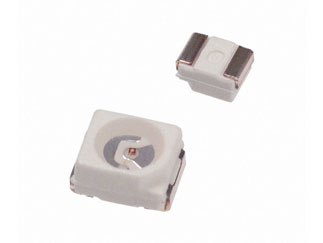

CMD15-21 Series Yellow 120° 585 nm 10 mcd 2 V Clear Lens SMT LED - PLCC-2
| | |||||||||||
| | |||||||||||
| Mfr. Name: | VCC | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:2000 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
VCC CMD67-21VYC/TR8 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=CMD67-21VYC/TR8&field4=VCC&field18=https://p1na.futureelectronics.com/p/6754147
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=CMD67-21VYC/TR8&field4=VCC&field18=https://p1na.futureelectronics.com/p/6754147
VCC CMD67-21VYC/TR8 - Technical Attributes
Attributes Table
| No of LEDs: | 1 |
| Color: | Yellow |
| Lens Type: | Clear |
| Forward Voltage: | 2V |
| Forward (Drive) Current: | 30mA |
| Intensity: | 10mcd |
| Viewing Angle: | 120° |
| Wavelength: | 585nm |
| Rated Power: | 105mW |
| Operating Temp Range: | -40°C to +85°C |
| Storage Temperature Range: | -40°C to +85°C |
| Moisture Sensitivity Level: | 2 |
| Mounting Method: | Surface Mount |
Features & Applications
The CMD67-21VYC/TR8 is a part of CMD67-21 Series consist of 2.1 V with Intensity 85 mcd 120° viewing angle Clear Lens Super Yellow Color LED .
Product Features:
- Tape and reel packaged for high-speed autoinsertion
- Convection and vapor-phase eflow compatible
- Compact form enables high density placement
- Packaged 2000 pieces per reel
- Leading Edge LED Optoelectronic Performance
- Consistent high brightness
- Integral lensing for narrow angle light dispersion
- Bi-color available
- Exceptional Reliability
- Stringent process controls assure quality
- Extensive qualification testing to meet strictest requirements
- Designed to permit easy post-reflow solder joint inspection
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
10 Weeks
Quantity
Unit Price
2,000+
$0.345
Product Variant Information section
Available Packaging
Package Qty:
2000 per Reel
Mounting Method:
Surface Mount
