Manufacturer Part #
574902B03300G

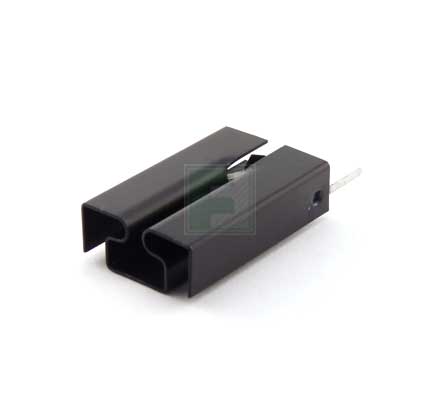

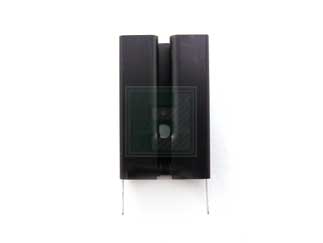

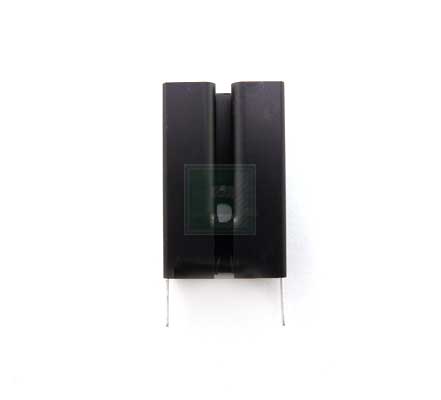

TO-220 Package 16.00 C/W Thermal Resistance Low Cost Labour Saving Heat Sink
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Boyd | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:750 per Bulk | ||||||||||
| Date Code: | 2310 | ||||||||||
Product Specification Section
Boyd 574902B03300G - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=574902B03300G&field4=Boyd&field18=https://p1na.futureelectronics.com/en/p/6986723
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=574902B03300G&field4=Boyd&field18=https://p1na.futureelectronics.com/en/p/6986723
Boyd 574902B03300G - Technical Attributes
Attributes Table
| Thermal Resistance: | 16°C/W |
| Material: | Black Anodized |
| Dimension: | H 34.93mm x L 9.02mm x W 21.84mm |
Features & Applications
The 574502B03700G is a Low cost labor saving slide on heat sink featuring spring action and solderable tabs.
This non-electronic component is functionally unaffected by the normal soldering or reflow processes used for semiconductor circuits. The heat resistance time or heat resistance temperature is not applicable for the component.
Specifications:
- Rectangular Shape
- Material: Aluminum
- Material Finish: Black Anodized
- Length 1.375" (34.93 mm)
- Width 0.860" (21.84 mm)
- Height of Fin: 0.395" (10.03 mm)
- Power Dissipation @ Temperature Rise: 2.5 W @ 40°C
- Thermal Resistance @ Forced Air Flow: 6.0°C/W @ 400 LFM
- Thermal Resistance @ Natural: 16°C/W
- Package: TO-220
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
16 Weeks
Quantity
Unit Price
1
$3.26
10
$3.20
25
$3.15
75
$3.09
150+
$3.02
Product Variant Information section
Available Packaging
Package Qty:
750 per Bulk
