Manufacturer Part #
AWHW 34G-0202-T

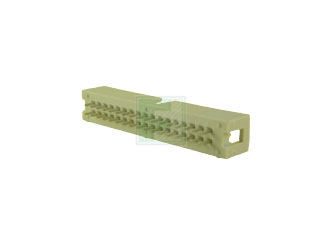

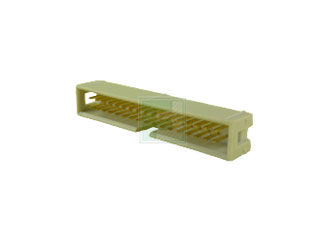

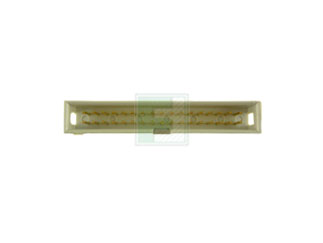

34 Position 2.54 mm Pitch PCB Mount Straight Box Header
| | |||||||||||
| | |||||||||||
| Mfr. Name: | ASSMANN WSW Components | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:40 per Tray Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
ASSMANN WSW Components AWHW 34G-0202-T - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=AWHW 34G-0202-T&field4=ASSMANN WSW Components&field18=https://p1na.futureelectronics.com/p/7042260
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=AWHW 34G-0202-T&field4=ASSMANN WSW Components&field18=https://p1na.futureelectronics.com/p/7042260
ASSMANN WSW Components AWHW 34G-0202-T - Technical Attributes
Attributes Table
| No of Positions: | 34 |
| Pitch: | 2.54 mm |
| Style/Orientation: | Straight Header/Plug |
| Termination: | Solder |
| Operating Temp Range: | -40°C to +105°C |
| Current Rating: | 3A |
| Material: | Polybutylene Terephthalate |
| No of Rows: | 2 |
| Gender: | Male |
| Type: | Shrouded Header |
| Color: | Grey |
| Mounting Method: | Through Hole |
Features & Applications
The AWHW34G-0202-T-R is a Low Profile Straight 180° pin, Flash Gold plating, 34 Contacts, 2.54 mm x 2.54 mm pitch Header . It has an operating temperature range of -40°C to +105°C.
Features:
- Insulator: Glass-Filled thermoplastic, UL 94V-0
- Contact Material: Copper Alloy
- Contact Area: 1µ” ~ 30µ” Selective Gold
- Solder Tails Area: 100µ” Tin/Lead Free (Brighten Tin/Matte Tin)
- Contact Resistance: 30MO Max @1A DC
- Insulation Resistance: 1,000MO @ 500V DC
- Dielectric Voltage: 500V AC/rms, 60Hz for 1 min.
- Current Rating: 3 Amps
- Voltage Rating: 250V AC/rms, 60Hz
View the available AWHW34 series of IDCs
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
14 Weeks
Quantity
Unit Price
1
$0.50
50
$0.49
200
$0.475
500
$0.465
2,000+
$0.445
Product Variant Information section
Available Packaging
Package Qty:
40 per Tray
Mounting Method:
Through Hole
