Manufacturer Part #

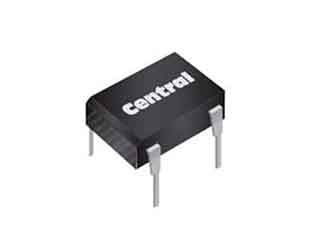

CBR1-D100 PBFREE
1KV, 1A, 4-Pin DIP.
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Central Semiconductor | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:50 per Tube Package Style:DIP-4 Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
Central Semiconductor CBR1-D100 PBFREE - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=CBR1-D100 PBFREE&field4=Central Semiconductor&field18=https://p1na.futureelectronics.com/p/7141272
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=CBR1-D100 PBFREE&field4=Central Semiconductor&field18=https://p1na.futureelectronics.com/p/7141272
Central Semiconductor CBR1-D100 PBFREE - Technical Attributes
Attributes Table
| Type: | Single Phase |
| Average Rectified Current-Max: | 1A |
| Reverse Voltage-Max [Vrrm]: | 700V |
| Peak Current-Max: | 50A |
| Average Forward Current-Max: | 1A |
| Forward Voltage: | 1.1V |
| DC Blocking Voltage: | 1000V |
| Operating Temp Range: | -65°C to +150°C |
| Storage Temperature Range: | -65°C to +150°C |
| Moisture Sensitivity Level: | 1 |
| No of Terminals: | 4 |
| Package Style: | DIP-4 |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
16 Weeks
Quantity
Unit Price
50
$0.30
200
$0.29
750
$0.285
2,000
$0.28
5,000+
$0.27
Product Variant Information section
Available Packaging
Package Qty:
50 per Tube
Package Style:
DIP-4
Mounting Method:
Through Hole
