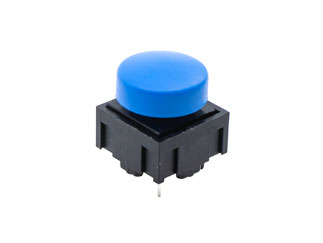

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

320.02E11.09BLK

320 Series SPST 1.35 N Black Square Button Through Hole Tactile Switch

320.02E11.09BLK Datasheet 320.02E11.09BLK Documentation Specifications
ECAD Model: Convert this file for your ECAD tool by downloading the free. Learn more about ECAD model.
Mfr. Name:	E-Switch
Standard Pkg:	Product Variant Information section Available Packaging Bulk BulkSelected Variant Qty: 1,026+ / Unit Price: $1.46 / Stock: 0 Qty: 54+$1.46 Stock: 0 Package Qty: 54 per Bulk Mounting Method: Through Hole
Date Code:

E-Switch 320.02E11.09BLK - Technical Attributes

Actuation Force:	1.35N
Contact Material:	Silver Over Copper
Actuator Style:	Standard
Termination Style:	PCB
Dimension:	L 12.4mm x W 12.4mm
Mounting Method:	Through Hole

Features & Applications

The 320 series tactile switch has multiple cap and color options and through hole termination. Its high reliability dome technology and excellent tactile feedback make it one of our best sellers!

Applications for the 320 series tactile switch include telecommunications, networking, computer/servers, performance audio, instrumentation, low power on/off designs, external hard drives and modems, among others.

Features:
