onsemi | NCP5663DSADJR4G

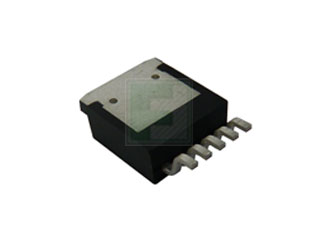

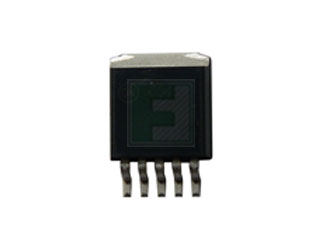

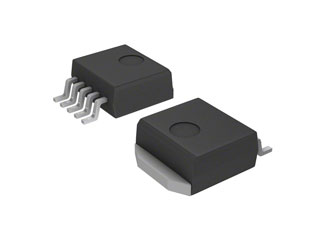

The NCP5663DSADJR4G is a high performance, low dropout linear regulator with an output current of 3 A, available in a D2PAK-5 package.

It provides additional features such as Enable and Error Flag (for the fixed output version), increasing the utility of these devices.

Features:

• Ultra−Fast Transient Response (Settling Time: 1−3 µs)
• Low Noise Without Bypass Capacitor (28 µVrms)
• Low Ground Current Independent of Load (3.0 mA Maximum)
• Fixed/Adjustable Output Voltage Versions
• Enable Function
• Error Flag (Fixed Output Version)
• Current Limit Protection
• Thermal Protection
• 0.9 V Reference Voltage for Ultra−Low Output Operation
• Power Supply Rejection Ratio > 65 dB
• NCV Prefix for Automotive and Other Applications Requiring Site and Change Controls
• This is a Pb−Free Device

Applications:

• Servers
• ASIC Power Supplies
• Post Regulation for Power Supplies
• Constant Current Source
• Networking Equipment
• Gaming and STB Modules
