Manufacturer Part #

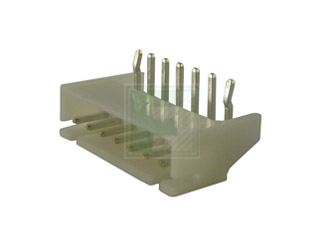

S7B-XH-A(LF)(SN)
7 Position Single Row 2.5 mm Side Entry Through Hole Shrouded Header
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | JST | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:250 per Box |
||||||||||
| Date Code: | 2531 | ||||||||||
Product Specification Section
JST S7B-XH-A(LF)(SN) - Product Specification
Shipping Information:
Item cannot ship to certain countries.
See List
Item cannot ship to following countries:
China
HTS Code:
8536.69.40.40
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=S7B-XH-A(LF)(SN)&field4=JST&field18=https://p1na.futureelectronics.com/p/8024252
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=S7B-XH-A(LF)(SN)&field4=JST&field18=https://p1na.futureelectronics.com/p/8024252
JST S7B-XH-A(LF)(SN) - Technical Attributes
Attributes Table
| No of Positions: | 7 |
| Pitch: | 2.5 mm |
| Style/Orientation: | Right Angle Header/Plug |
| Termination: | Through Hole |
| Operating Temp Range: | -25°C to +85°C |
| Voltage Rating: | 250V |
| Current Rating: | 3A |
| Contact Plating: | Tin |
| Material: | Polyamide |
| No of Rows: | 1 |
| Gender: | Male |
| Type: | Header |
| Mating Type: | Detent Lock |
| Color: | Natural |
| Insulation Resistance: | 1000MΩ |
Pricing Section
Global Stock:
1,628
USA:
1,628
Factory Lead Time:
16 Weeks
Quantity
Unit Price
125
$0.199
300
$0.195
1,000
$0.191
2,000
$0.189
5,000+
$0.181
