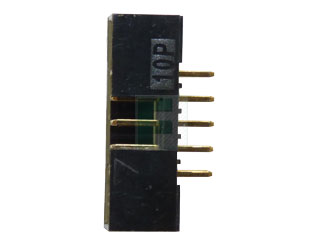

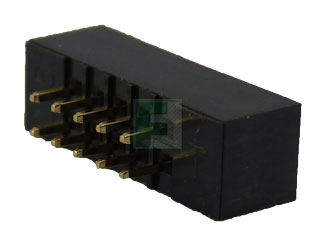

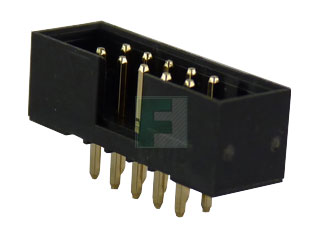

Sullins | SBH21-NBPN-D05-ST-BK

Manufacturer Part #

SBH21-NBPN-D05-ST-BK

10 Position Total Dual Row 2 mm Pitch Straight Male Shrouded Box Header

ECAD Model:
Mfr. Name: Sullins
Standard Pkg:
Product Variant Information section
Date Code: 2505
Product Specification Section
Sullins SBH21-NBPN-D05-ST-BK - Technical Attributes
Attributes Table
No of Positions: 10
Pitch: 2 mm
Style/Orientation: Straight Header/Plug
Termination: Solder
Type: Box Header
Features & Applications

The NRPN052PAEN-RC is a part of SBH21 series header. It has an operating temperature ranging from -40°C to + 85°C.

Features:

  • Centered Polarizing Notch
  • Processing Temperature: 230 °C for 60 seconds Max. (260 °C, 10 seconds)
  • UL Flammability Rating: 94V-0
  • Voltage Rating: 20m OHMs Max.
  • Current Rating: 2 AMP per contact
  • Voltage Drop: AC 500 V
  • Insulation Resistance: 1000 Mega OHMS
  • Mates with SFH21 series

View the complete SBH21 series PCB Interconnect

Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
5,785
Factory Lead Time:
8 Weeks
Minimum Order:
1000
Multiple Of:
1000
Total
$470.00
USD
Quantity
Unit Price
1,000
$0.47
2,000
$0.465
3,000
$0.46
4,000+
$0.455
Product Variant Information section
Related Products

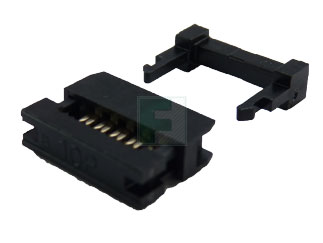

SFH213-PPPN-D05-ID-BK
SFH213-PPPN-D05-ID-BK
Sullins
10 Position Total Dual Row 2 mm Straight IDC Insulation Displacement Socket
As low as: $0.615 (USD)

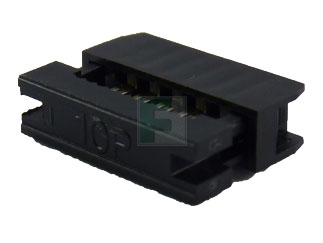

SFH21-PPPN-D05-ID-BK
