Keystone | 971

Manufacturer Part #

971

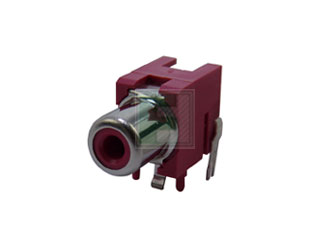

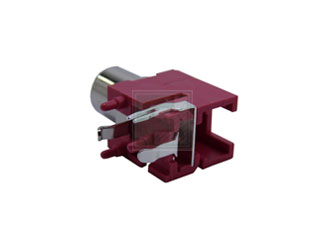

Red Color Keyed Female Receptacle 2 Contact Snap Fit PC Phono Jack

ECAD Model:
Mfr. Name: Keystone
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Keystone 971 - Technical Attributes
Attributes Table
Gender: Female Receptacle
No of Positions: 2
Mating Type: Push Pull
Termination: Crimp
Mounting Method: Snap Fit
Features & Applications

The 971 is a 2 postion right angle color keyed female snap-fit PC phone jack.

Features:

  • Mates with .125 (3.2) diameter pins
  • Features a normally closed circuit
  • Various colors for circuit identification
  • Snap-fit mounting for postive retention

Specifications:

  • Housing: PBT
  • Ground terminal: .020 (.51) thick brass, nickel plate
  • Spring contact:.012(.30) thick phosphor bronze,silver plate
  • Shunt terminal: .016 (.41) thick brass, silver plate
  • Insulator color: red

Applications:

  • Industrial
  • Audio/video applications
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
3,206
Factory Lead Time:
12 Weeks
Minimum Order:
250
Multiple Of:
250
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$447.50
USD
Quantity
Unit Price
10
$1.90
25
$1.88
50
$1.86
125
$1.83
250+
$1.79
