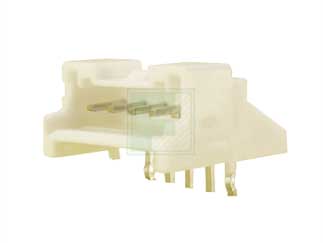

(SN)-JST-FNT-MED.JPG?m=55Uim2)

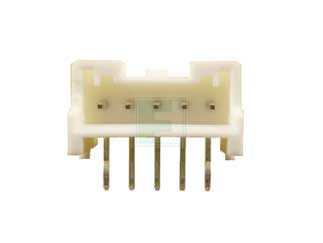

(SN)-JST-SID-MED.JPG?m=55v8NH)

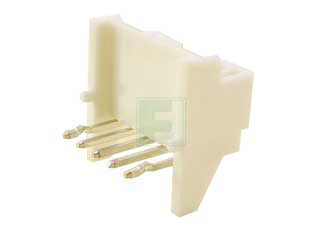

(SN)-JST-BCK-MED.JPG?m=55S6jK)
Manufacturer Part #
S05B-PASK-2(LF)(SN)
PA Series 5 Position 2 mm Single Row Through Hole Wire to Board Shrouded Header
| | |||||||||||
| | |||||||||||
| Mfr. Name: | JST | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:500 per Box Mounting Method:Through Hole | ||||||||||
| Date Code: | 2213 | ||||||||||
Product Specification Section
JST S05B-PASK-2(LF)(SN) - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
JST S05B-PASK-2(LF)(SN) - Technical Attributes
Attributes Table
| No of Positions: | 5 |
| Pitch: | 2 mm |
| Style/Orientation: | Right Angle Header/Plug |
| Termination: | Crimp |
| Operating Temp Range: | -25°C to +85°C |
| Voltage Rating: | 250V |
| Current Rating: | 3A |
| Contact Plating: | Tin |
| Material: | Polybutylene Terephthalate |
| No of Rows: | 1 |
| Gender: | Male |
| Type: | Wire to Board |
| Mating Type: | Locking Ramp |
| Color: | Natural |
| Insulation Resistance: | 1000MΩ |
| Mounting Method: | Through Hole |
Features & Applications
Pricing Section
Global Stock:
16,151
USA:
16,151
On Order:
0
Factory Lead Time:
16 Weeks
Quantity
Unit Price
1
$0.235
125
$0.23
400
$0.225
1,250
$0.22
4,000+
$0.21
Product Variant Information section
Available Packaging
Package Qty:
500 per Box
Mounting Method:
Through Hole
