Dialight | 555-4001F

Manufacturer Part #

555-4001F

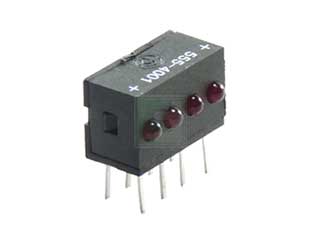

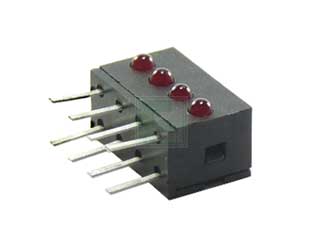

555 Series Red 2 mm 40° 1.2 mcd Diffused 20 mA 1.6 V Circuit Board Indicator

ECAD Model:
Mfr. Name: Dialight
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Dialight 555-4001F - Technical Attributes
Attributes Table
No of LEDs: 4
Color: Red
Lens Type: Diffused
Forward Voltage: 1.6V
Forward (Drive) Current: 20mA
Intensity: 1.2mcd
Viewing Angle: 40°
Wavelength: 650nm
Rated Power: 80mW
Operating Temp Range: -55°C to +100°C
Storage Temperature Range: -55°C to +100°C
Dimension: H  6.35mm x L  10.29mm x W  7.11mm
Features & Applications

The 555-4001F is a part of 555-series 2 mm 40° 1.2 mcd Diffused 20 mA 1.6 V Red LED Circuit Board Indicator.

Product Features:

  • Red Color
  • 650 nm Peak wavelength
  • 40° viewing angle
  • Multiple CBIs form horizontal LED arrays on 2.54mm (0.100”) center-lines
  • High Contrast, UL 94 V-0 rated, black housing
  • Oxygen index: 31.5%
  • Polymer content: PBT, 0.280 g
  • Housing stand-offs facilitate PCB cleaning
  • Solderability per MIL-STD-202F, method 208F
  • LEDs are safe for direct viewing per IEC 825-1, EN-60825-1





Read More...
Pricing Section
Global Stock:
0
USA:
0
On Order:Order inventroy details
189
Factory Stock:Factory Stock:
0
Factory Lead Time:
22 Weeks
Minimum Order:
1
Multiple Of:
1
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$2.58
USD
Quantity
Unit Price
1
$2.58
15
$2.52
30
$2.50
100
$2.45
200+
$2.40
