Central Semiconductor | MPQ2222A

Manufacturer Part #

MPQ2222A

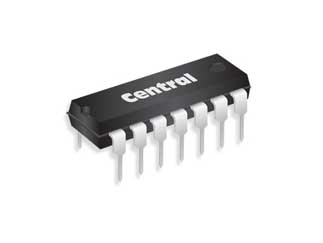

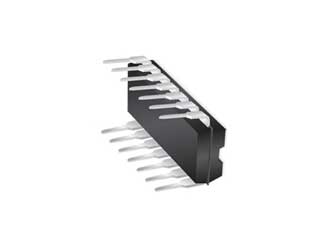

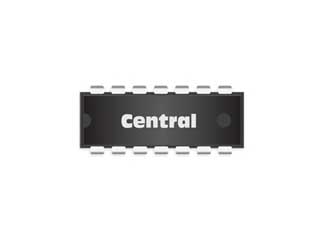

MPQ Series 40 V 500 mA NPN Through Hole Silicon Quad Transistor - DIP-14

ECAD Model:
Mfr. Name: Central Semiconductor
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Central Semiconductor MPQ2222A - Technical Attributes
Attributes Table
Polarity: NPN
Type: General Purpose
CE Voltage-Max: 40V
Collector Current Max: 500mA
Power Dissipation-Tot: 1.9W
DC Current Gain-Min: 75
Package Style:  DIP-14
Mounting Method: Through Hole
Features & Applications
The MPQ2222A is a NPN Silicon Quad Transistor, available in through hole 14-DIP package.

Product Specifications:

  • Collector to Base Voltage : 75 V
  • Emitter-Base Voltage: 6 V
  • Operating and Storage Junction Temperature: -65 to 150°C
  • hermal Resistance ΘJA : 66 °C/W

Applications:

  • General purpose amplifier
  • Switching applications
Read More...
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
N/A
Minimum Order:
400
Multiple Of:
25
Total
$1,200.00
USD
Quantity
Unit Price
1
$3.26
15
$3.18
40
$3.14
125
$3.09
300+
$3.00
