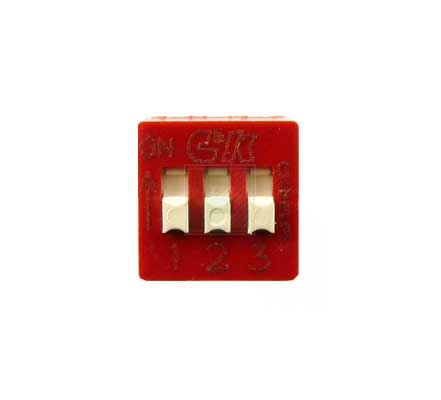

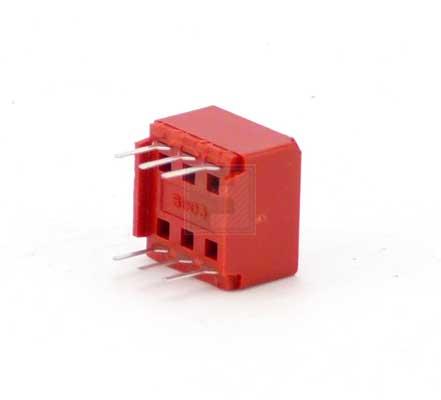

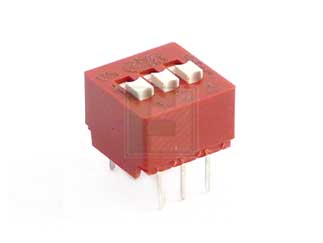

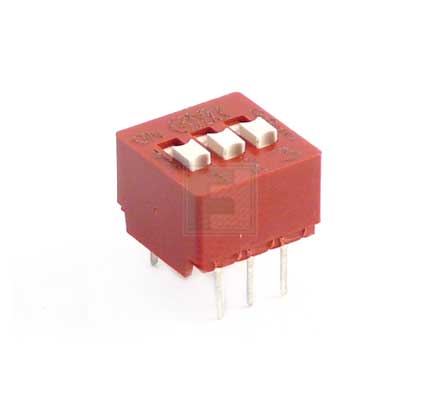

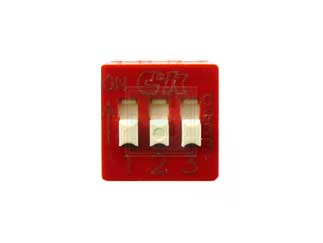

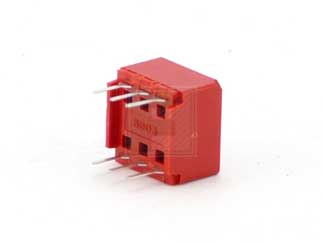

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

BD03

BD Series Top Actuated SPST 3 Position Through Hole DIP Switch

BD03 Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	C&K
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 54 per Tube Mounting Method: Through Hole
Date Code:	2438

C&K BD03 - Technical Attributes

Type:	Dip
No of Positions:	2
Circuitry:	SPST
Actuator Style:	Standard
Termination Style:	Vertical
Sealed Option:	Unsealed
Contact Resistance:	50mΩ
Voltage Rating:	5V
Current Rating:	100mA
Insulation Resistance:	1000MΩ
Terminal Pitch:	2.54mm
Operating Temp Range:	-40°C to +85°C
Mounting Method:	Through Hole

Expand List

Collapse List

Features & Applications

C & K Components’ BD Series of Standard Profile DIP Switches all have an extended actuator for easy actuation. Its open bottom construction allows for solder washing without the need for tape seal. The Series is RoHS Compliant. All BD Standard Profile DIP Switch actuators are in ‘OFF’ position.

The case & cover of the BD Series of Standard Profile DIP Switches are made of glass filled polyester (PBT) and are flame retardant (UL 94V-0). The actuator is also glass filled nylon 6/6, flame retardant, and heat stabilized (UL 94V-0). The contacts are gold over nickel over phosphor bronze and the terminals are made in matte-tin over phosphor bronze.

The BD03 is a 3 position, single pole single throw Standard Profile DIP Switch with a vertical through hole mounting style.
