(SN)--JST-FNT-MED.JPG?m=MVnEun)
Manufacturer Part #
15P-JET(LF)(SN)

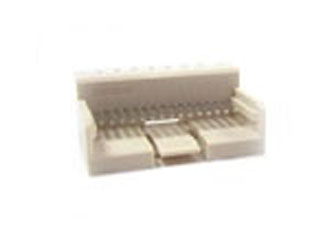

JET Series 15 Position 1.25 mm Pitch Board to Board Plug Connector
| | |||||||||||
| | |||||||||||
| Mfr. Name: | JST | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:168 per Tray Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
JST 15P-JET(LF)(SN) - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=15P-JET(LF)(SN)&field4=JST&field18=https://p1na.futureelectronics.com/p/9939547
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=15P-JET(LF)(SN)&field4=JST&field18=https://p1na.futureelectronics.com/p/9939547
JST 15P-JET(LF)(SN) - Technical Attributes
Attributes Table
| No of Positions: | 15 |
| Pitch: | 1.25 mm |
| Style/Orientation: | Straight Header/Plug |
| Termination: | Solder |
| Operating Temp Range: | -25°C to +85°C |
| Voltage Rating: | 50V |
| Current Rating: | 1A |
| Contact Plating: | Tin |
| Material: | Polyamide |
| Type: | Board to Board |
| Mating Type: | Friction Lock |
| Insulation Resistance: | 500MΩ |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
16 Weeks
Quantity
Unit Price
30
$0.625
100
$0.61
250
$0.595
500
$0.585
1,500+
$0.56
Product Variant Information section
Available Packaging
Package Qty:
168 per Tray
Mounting Method:
Through Hole
