Microchip | ARD00354

Manufacturer Part #

ARD00354

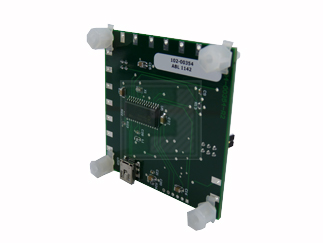

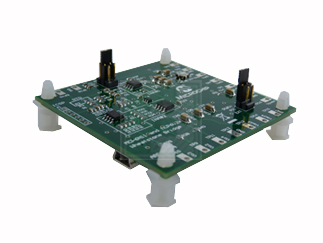

MCP6N11 and MCP6V2x Wheatstone Bridge Reference Design

ECAD Model:
Mfr. Name: Microchip
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Microchip ARD00354 - Technical Attributes
Attributes Table
Application Type: Metering
Core Supported: MCP6N11
Features & Applications

The ARD00354 is a part of MCP6N11 and MCP6V2x Wheatstone Bridge Reference Design that demonstrates the Performance of Instrumentation Amplifier. It is equipped with RTD Temperature sensor and INA signal conditioning.

This board demonstrates the performance of Microchip’s MCP6N11 instrumentation amplifier (INA) and a traditional three op amp INA using the MCP6V26 and MCP6V27 auto-zeroed op amps from Microchip. The input signal comes from an RTD temperature sensor in a Wheatstone bridge. Real world interference is added to the bridge’s output, to provide realistic performance comparisons.

Product Features:

  • RTD temperature sensor
  • INA signal conditioning
  • PICmicro® signal conditioning and communications
  • PC software (GUI): Thermal Management Utility
  • Kit Contains:
    • 1x MCP6N11 Wheatstone Bridge Reference Design
    • 1x Mini USB Cable

Applications:

  • High Side Current Sensor
  • Wheatstone Bridge Sensors
  • Difference Amplifier with Level Shifting
  • Power Control Loops
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
12 Weeks
Minimum Order:
4
Multiple Of:
1
Total
$252.92
USD
Quantity
Unit Price
1
$64.17
4
$63.23
10
$62.62
25
$62.01
40+
$61.11
