Manufacturer Part #
AC164112
MPLAB ICD 2 Vpp Voltage Limiter
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Microchip | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1 per Bulk | ||||||||||
| Date Code: | |||||||||||
Microchip AC164112 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=AC164112&field4=Microchip&field18=https://p1na.futureelectronics.com/p/development-tools--development-tool-hardware/ac164112-microchip-2117406
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=AC164112&field4=Microchip&field18=https://p1na.futureelectronics.com/p/development-tools--development-tool-hardware/ac164112-microchip-2117406
Microchip AC164112 - Technical Attributes
| Application Type: | Power Management |
| Core Supported: | MPLAB |
Features & Applications

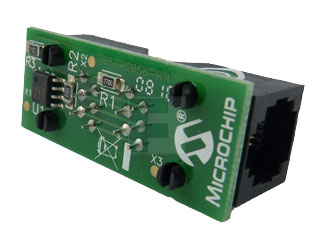

The AC164112 is a simple in-line voltage clamp necessary when programming and debugging the latest PIC12/PIC16/PIC18 products from Microchip.

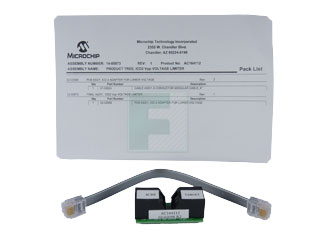

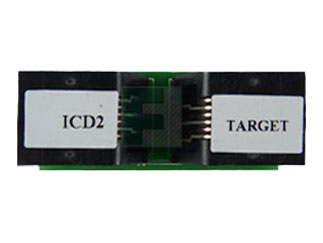

The MPLAB ICD 2 provides a 12 V supply to Vpp which supports legacy products. This MPLAB ICD 2 Vpp Voltage Limiter clamps this Vpp supply to 8.5 V for use with the Microchip products on the latest process technologies released in 2008 or later. To determine if you require this product for the device you are using, consult the respective product datasheet for appropriate programming voltage. The kit consists of a Vpp Voltage Limiter with 2 female RJ11 connectors and a single patch RJ11 cable with male connectors.
Available Packaging
Package Qty:
1 per Bulk
