Manufacturer Part #
APT20GN60BDQ1G

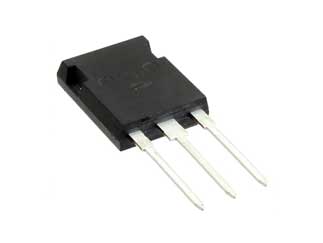

APT20GN60 Series 600 V 40 A 120 nC 136 W 9/140 ns Trench IGBT - TO-247-3
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | Microchip | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:50 per Tube Package Style:TO-247-3 Mounting Method:Through Hole |
||||||||||
| Date Code: | |||||||||||
Microchip APT20GN60BDQ1G - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
*****FPCN117764/FPCN118009 UPDATE*****Revision History: December 05, 2025: Issued final notification.December 10, 2025: Re-issued final notification to remove TO-247 products in the Notification Subject and Description of Change.January 06, 2025: Re-issued final notification to change Impacts to Data Sheet to Yes.Note: The change described in this PCN does not alter Microchip's current regulatory compliance Description of Change:Re-issued final notification to change Impacts to Data Sheet to Yes.Reason for Change:To improve productivity by a change in terminal plating.
Description of Change:Rev AInitial release of documentMicrochip has released a new Document for the Lead Finish Change from Tin-Silver-Copper (SAC) to 100% Tin (Sn) of devices. If you are using one of these devices please read the document located at Lead Finish Change from Tin-Silver-Copper (SAC) to 100% Tin (Sn).Date Document Changes Effective: 23 Dec 2025
Description of Change:Qualification of Tin (Sn) as a new terminal plating for selected APL502, APL602, APT100, APT10M, APT11N, APT120, APT13G, APT150, APT15D, APT15G, APT200, APT20G, APT20M, APT25G, APT30D, APT30G, APT30M, APT30S, APT33G, APT35G, APT401, APT40D, APT40G, APT40M, APT45G, APT47N, APT501, APT502, APT50G, APT50M, APT601, APT602, APT603, APT60D, APT60M, APT60S, APT65G, APT75G, APT801, APT802, APT803, APT804, APT805, APT806, APT807, APT80G, APT94N, CC1105, CC1215, CC2515, CC3037, CC3038, CC3069 and CC3125 Microsemi Power Discrete products.Reason for Change:To improve productivity by a change in terminal plating.Estimated First Ship Date:02 January 2026 (date code: 2601)
Description of Change: Qualification of Tin (Sn) as a new terminal plating for selected APL502, APL602, APT100, APT10M, APT11N, APT120, APT13G, APT150, APT15D, APT15G, APT200, APT20G, APT20M, APT25G, APT30D, APT30G, APT30M, APT30S, APT33G, APT35G, APT401, APT40D, APT40G, APT40M, APT45G, APT47N, APT501, APT502, APT50G, APT50M, APT601, APT602, APT603, APT60D, APT60M, APT60S, APT65G, APT75G, APT801, APT802, APT803, APT804, APT805, APT806, APT807, APT80G, APT94N, CC1105, CC1215, CC2515, CC3037, CC3038, CC3069 and CC3125 Microsemi Power Discrete TO-247 products.Reason for Change: To improve productivity by a change in terminal platingEstimated First Ship Date: 02 January 2026 (date code: 2601)
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=APT20GN60BDQ1G&field4=Microchip&field18=https://p1na.futureelectronics.com/p/discretes--transistors--igbts/apt20gn60bdq1g-microsemi-2032113
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=APT20GN60BDQ1G&field4=Microchip&field18=https://p1na.futureelectronics.com/p/discretes--transistors--igbts/apt20gn60bdq1g-microsemi-2032113
Microchip APT20GN60BDQ1G - Technical Attributes
| CE Voltage-Max: | 600V |
| Collector Current @ 25C: | 40A |
| Power Dissipation-Tot: | 136W |
| Gate - Emitter Voltage: | ±30V |
| Pulsed Collector Current: | 60A |
| Turn-on Delay Time: | 9ns |
| Turn-off Delay Time: | 140ns |
| Qg Gate Charge: | 120nC |
| Reverse Recovery Time-Max: | 19ns |
| Leakage Current: | 300nA |
| Input Capacitance: | 1110pF |
| Thermal Resistance: | 1.1°C/W |
| Operating Temp Range: | -55°C to +175°C |
| No of Terminals: | 3 |
| Package Style: | TO-247-3 |
| Mounting Method: | Through Hole |
Available Packaging
Package Qty:
50 per Tube
Package Style:
TO-247-3
Mounting Method:
Through Hole
