Manufacturer Part #
01250003H

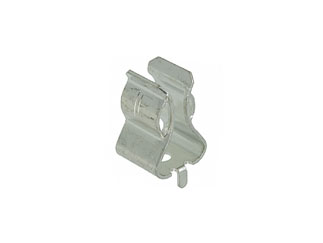

30 A 250 V Ø 13/32 inch Clip Ear Beryllium Copper Solder Lug Fuseholder
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Littelfuse | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:100 per Box | ||||||||||
| Date Code: | 2535 | ||||||||||
Littelfuse 01250003H - Product Specification
Shipping Information:
ECCN:
PCN Information:
Subject: Addition of production capacity for 01250003H for assurance of supplyWith regards to the above reference, Littelfuse would like to inform you that we would be increasing our production via another plant in China for assurance of supply for the clip 01250003H. The clip 01250003H that would be shipped out from China factory would have COO China as the single change on the label.There are no changes to the electrical specs as defined in the datasheet, no changes in the form, fit and function of the clip. Please see attached for validation report. There is no change to the part number. We would start the shipments with immediate effect.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=01250003H&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/electromechanical--circuit-protection--fuse-holders/01250003h-littelfuse-2151348
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=01250003H&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/electromechanical--circuit-protection--fuse-holders/01250003h-littelfuse-2151348
Littelfuse 01250003H - Technical Attributes
| Hold Fuse Type: | Clip |
| Diameter: | 10.31mm |
| Contact Material: | Beryllium Copper |
| Contact Plating: | Tin |
| Rated Voltage: | 250V |
| Current Rating: | 30A |
| Termination Style: | PC Pin |
| Height - Max: | 18.5mm |
| Dimension: | L 11.1mm x W 12.5mm |
Available Packaging
Package Qty:
100 per Box
