Manufacturer Part #
03455LS1H

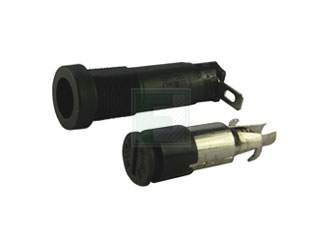

15.24 mm Clip Copper Alloy Tin Panel Mount Fuse Holder
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Littelfuse | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:100 per Box Mounting Method:Panel Mount | ||||||||||
| Date Code: | 2506 | ||||||||||
Littelfuse 03455LS1H - Product Specification
Shipping Information:
ECCN:
PCN Information:
Subject : Addition of marking UKCA to labels This customer notification refers to a cosmetic change on the labels. No changes to form, fit and function of the affected fuses.With regards to the above reference, there will be an additional marking added to the labels of the affected fuses. Products affected are all fuses with CE mark on labels on the packaging and carton boxes.
This customer notification refers to a cosmetic change on the labels. No changes to form, fit and function of the affected fuses. With regards to the above reference, there will be an additional marking added to the labels of the affected fuses. Products affected are all fuses with CE mark on labels on the packaging and carton boxes. This change is only the addition of the below marking to the label and does not impact form, fit and function of the fuse itself.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=03455LS1H&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/electromechanical--circuit-protection--fuse-holders/03455ls1h-littelfuse-3205143
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=03455LS1H&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/electromechanical--circuit-protection--fuse-holders/03455ls1h-littelfuse-3205143
Littelfuse 03455LS1H - Technical Attributes
| Hold Fuse Type: | Holder |
| Diameter: | 15.24mm |
| Contact Material: | Copper Alloy |
| Contact Plating: | Tin |
| Rated Voltage: | 250V |
| Current Rating: | 10A |
| Termination Style: | Quick Connect |
| No of Poles: | 1 |
| Operating Temp Range: | -40°C to +85°C |
| Height - Max: | 44.45mm |
| Dimension: | L 15.24mm x W 44.45mm |
| Mounting Method: | Panel Mount |
Available Packaging
Package Qty:
100 per Box
Mounting Method:
Panel Mount
