Littelfuse | 2N6404G

Manufacturer Part #

2N6404G

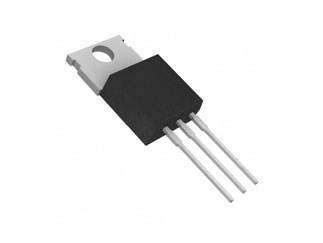

2N6400 Series 600 V 16 A Reverse Blocking Thyristor Silicon Rectifier-TO-220AB

ECAD Model:
Mfr. Name: Littelfuse
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Littelfuse 2N6404G - Technical Attributes
Attributes Table
Type: SCR
On-State Voltage [Vtm]: 1.7V
On State Current [It]-Typ: 10A
Off-State Voltage [Vdrm]: 600V
Off-State Current [Idrm]: 1µA
Gate Trigger Current [Igt]-Max: 30mA
On-state RMS Current [Irms]-Max: 16A
Hold Current [Ih]: 18mA
Configuration: Single
Peak Current-Max: 160A
Gate Trigger Voltage: 0.7V
Operating Temp Range: -40°C to +125°C
Storage Temperature Range: -40°C to +125°C
Package Style:  TO-220-3 (TO-220AB)
Mounting Method: Through Hole
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
N/A
Minimum Order:
1000
Multiple Of:
500
tariff icon
Tariff charges may apply if shipping to the United States. An estimate of tariff charges will be calculated at checkout.
Total
$770.00
USD
Quantity
Unit Price
500
$0.78
1,000
$0.77
1,500
$0.765
2,000
$0.76
2,500+
$0.745
