Manufacturer Part #
AVS1ACP08

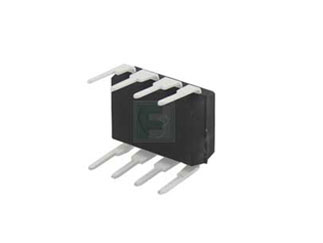

AVS12 Series 600 V 12 A Through Hole Automatic Voltage Switch - DIP-8
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | STMicroelectronics | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:50 per Tube Package Style:DIP-8 Mounting Method:Through Hole |
||||||||||
| Date Code: | 2449 | ||||||||||
STMicroelectronics AVS1ACP08 - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=AVS1ACP08&field4=STMicroelectronics&field18=https://p1na.futureelectronics.com/p/electromechanical--circuit-protection--power-thyristors/avs1acp08-stmicroelectronics-5913702
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=AVS1ACP08&field4=STMicroelectronics&field18=https://p1na.futureelectronics.com/p/electromechanical--circuit-protection--power-thyristors/avs1acp08-stmicroelectronics-5913702
STMicroelectronics AVS1ACP08 - Technical Attributes
| Type: | Triac |
| On-State Voltage [Vtm]: | 1.75V |
| On State Current [It]-Typ: | 12A |
| Off-State Voltage [Vdrm]: | 600V |
| Gate Trigger Current [Igt]-Max: | 10µA |
| On-state RMS Current [Irms]-Max: | 12A |
| Configuration: | Single |
| Operating Temp Range: | 0°C to 125°C |
| Storage Temperature Range: | -40°C to +150°C |
| Package Style: | DIP-8 |
| Mounting Method: | Through Hole |
Features & Applications
The AVS1ACP08 is a 1 Output Through Hole Automatic Voltage Switch. It is composed of 2 devices Controller and Triac.
The Controller is optimized for low consumption and high security triggering of the triac. TRIAC is specially designed for optimization between sensitivity and dynamic parameters of the triac gate, which highly reduces the losses of supply resistor and allows excellent immunity against disturbances.
Features:
- Controller:
- 50/60Hz full compatibility
- Integrated voltage regulator
- Triggering pulse train of the triac
- Parasitic filter
- Low power consumption
- Triac:
- High efficiency and safety switching
- Uninsulated package : AVS12CD
- Vdrm = ± 600 v
- It(rms) : 12 A
Available Packaging
Package Qty:
50 per Tube
Package Style:
DIP-8
Mounting Method:
Through Hole
