Manufacturer Part #
S4X8ES

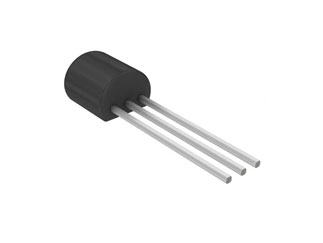

SxX8xSx Series 400 V 800 mAThrough Hole Sensitive SCRs - TO-92
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Littelfuse | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:500 per Bag Package Style:TO-92 Mounting Method:Through Hole | ||||||||||
| Date Code: | 2235 | ||||||||||
Product Specification Section
Littelfuse S4X8ES - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
File
Date
Location and Testing Change
09/24/2024 Details and Download
Description of Change:Approve an alternate backend assembly, test and packing location for TO-92 package Low Power Thyristor products with BCP consideration.There are no changeds in fit, form, function of the finished products. The affected products have been fully qualified in accordance with established performance and reliability.
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=S4X8ES&field4=Littelfuse&field18=https://p1apac.futureelectronics.com/p/electromechanical--circuit-protection--protection-thyristors/s4x8es-littelfuse-6031549
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=S4X8ES&field4=Littelfuse&field18=https://p1apac.futureelectronics.com/p/electromechanical--circuit-protection--protection-thyristors/s4x8es-littelfuse-6031549
Littelfuse S4X8ES - Technical Attributes
Attributes Table
| Type: | SCR |
| Directional: | Uni-Directional |
| No of Channels: | 1 |
| On-State Voltage [Vtm]: | 1.7V |
| On State Current [It]-Typ: | 0.51A |
| Off-State Voltage [Vdrm]: | 400V |
| Off-State Current [Idrm]: | 500µA |
| Hold Current [Ih]: | 5mA |
| Gate Trigger Current [Igt]-Max: | 200µA |
| Operating Temp Range: | -40°C to +125°C |
| Storage Temperature Range: | -40°C to +150°C |
| Package Style: | TO-92 |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
2,500
Singapore:
2,500
On Order:
0
Factory Lead Time:
21 Weeks
Quantity
Unit Price
500
$0.184
5,000
$0.182
7,500
$0.181
10,000
$0.18
12,500+
$0.177
Product Variant Information section
Available Packaging
Package Qty:
500 per Bag
Package Style:
TO-92
Mounting Method:
Through Hole
