Manufacturer Part #
TN3050H-12WY
Thyristors (SCR) and AC Switches-THYRISTORS (SCR)
| | |||||||||||
| | |||||||||||
| Mfr. Name: | STMicroelectronics | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:30 per Package Style:TO-247-3 Mounting Method:Through Hole | ||||||||||
| Date Code: | 2314 | ||||||||||
Product Specification Section
STMicroelectronics TN3050H-12WY - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=TN3050H-12WY&field4=STMicroelectronics&field18=https://p1apac.futureelectronics.com/p/electromechanical--circuit-protection--protection-thyristors/tn3050h-12wy-stmicroelectronics-1186307
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=Asia&field16=en&field2=TN3050H-12WY&field4=STMicroelectronics&field18=https://p1apac.futureelectronics.com/p/electromechanical--circuit-protection--protection-thyristors/tn3050h-12wy-stmicroelectronics-1186307
STMicroelectronics TN3050H-12WY - Technical Attributes
Attributes Table
| Type: | SCR |
| Directional: | Uni-Directional |
| No of Channels: | 1 |
| On-State Voltage [Vtm]: | 1.65V |
| On State Current [It]-Typ: | 19A |
| Off-State Voltage [Vdrm]: | 1200V |
| Off-State Current [Idrm]: | 5µA |
| Hold Current [Ih]: | 100mA |
| Gate Trigger Current [Igt]-Max: | 50mA |
| Operating Temp Range: | -40°C to +150°C |
| Storage Temperature Range: | -40°C to +150°C |

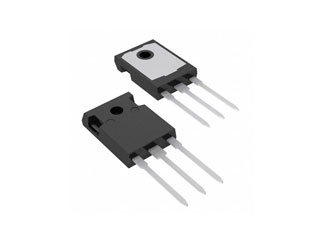

| Package Style: | TO-247-3 |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
111,690
Singapore:
111,690
On Order:
0
Factory Lead Time:
45 Weeks
Quantity
Unit Price
30
$2.25
120
$2.21
300
$2.19
750
$2.16
1,200+
$2.13
Product Variant Information section
Available Packaging
Package Qty:
30 per
Package Style:
TO-247-3
Mounting Method:
Through Hole
