Manufacturer Part #
30R135UU

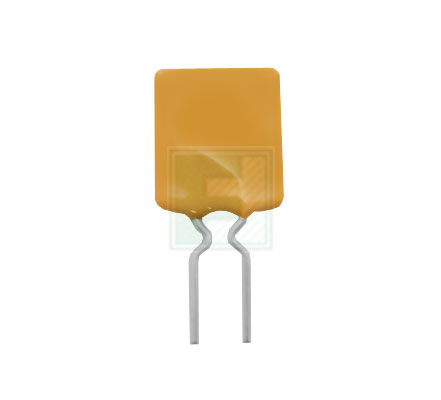

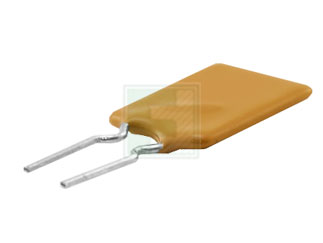

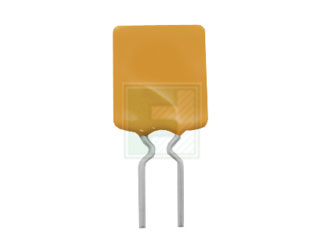

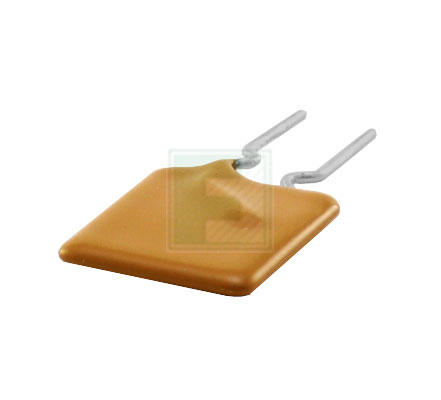

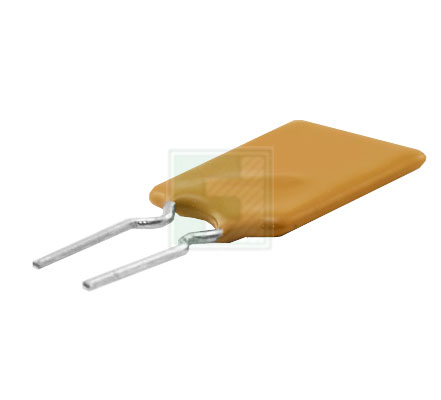

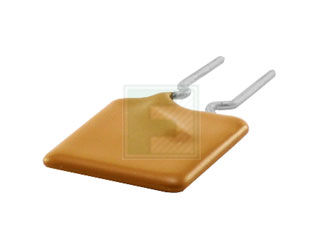

30R Series 30 V 1.35 A Radial Lead POLYFUSE® Resettable PTC
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Littelfuse | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:500 per Bag Package Style:RADIAL Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Littelfuse 30R135UU - Product Specification
Shipping Information:
ECCN:
PCN Information:
Product Change Notification for Littelfuse (Coating Material Change for Radial Lead PPTC)Littelfuse would like to notify you of a change related to the epoxy coating of the Radial Leaded PPTC products. Due to obsolescence of the current epoxy coating by our supplier, Littelfuse has qualified alternative epoxy coating sources. The change to the coating will impact all products in the PPTC Radial Leaded range.TimeframeThis change will be made starting Jan 1, 2024.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=30R135UU&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/electromechanical--circuit-protection--resettable-fuse/30r135uu-littelfuse-9708645
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=30R135UU&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/electromechanical--circuit-protection--resettable-fuse/30r135uu-littelfuse-9708645
Littelfuse 30R135UU - Technical Attributes
| Voltage Rating: | 30V |
| Hold Current [Ih]: | 1.35A |
| Trip Current: | 2.7A |
| Operating Temp Range: | -40°C to +85°C |
| Dimension: | T 3mm x L 13.5mm x W 8.9mm |
| Package Style: | RADIAL |
| Mounting Method: | Through Hole |
Available Packaging
Package Qty:
500 per Bag
Package Style:
RADIAL
Mounting Method:
Through Hole
