Manufacturer Part #

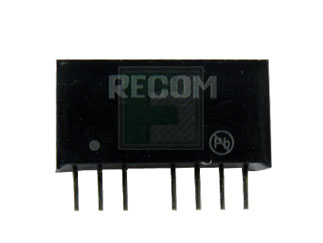

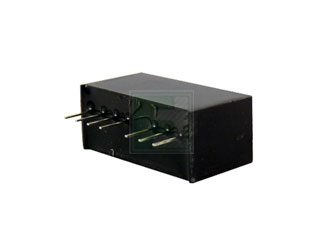

RSO-2412SZ/H3
RSO Series 1 W Single Output 12 V DC/DC Converter - SIP-8
| | |||||||||||
| | |||||||||||
| Mfr. Name: | RECOM | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:22 per Tube Package Style:SIP-8 Mounting Method:Through Hole | ||||||||||
| Date Code: | 2533 | ||||||||||
RECOM RSO-2412SZ/H3 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=RSO-2412SZ/H3&field4=RECOM&field18=https://p1na.futureelectronics.com/p/electromechanical--power-supplies--dc-dc/rso-2412sz-h3-recom-3337953
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=RSO-2412SZ/H3&field4=RECOM&field18=https://p1na.futureelectronics.com/p/electromechanical--power-supplies--dc-dc/rso-2412sz-h3-recom-3337953
RECOM RSO-2412SZ/H3 - Technical Attributes
| Type: | Encapsulated |
| Isolation: | Isolated |
| No of Outputs: | Single |
| Output Power: | 1W |
| Output Voltage: | 12V |
| Input Voltage: | 9V to 36V |
| Operating Temp Range: | -40°C to +85°C |
| Efficiency: | 83% |
| Power Dissipation: | 1W |
| Quiescent Current: | 25mA |
| Load Capacitance: | 680µF |
| Load Regulation (%): | 0.5% |
| Output Current: | 83mA |
| Switching Frequency-Max: | 800kHz |
| Ripple & Noise: | 50mV |
| Dimension: | L 21.8mm x W 9.2mm x H 11.1mm |
| Package Style: | SIP-8 |
| Mounting Method: | Through Hole |
Features & Applications
The RSO-2412SZ/H3 is a part of RSO-24 series DC/DC Converter. It has an operating temperature ranging from -40 °C to +85 °C and it comes in SIP-8 Packaging.
High-power-density, an industrial temperature range of -40°C to +85°C and extra features like
On-Off-control are just some of the characteristics of this converter, ideal for highly sophisticated
industrial-designs. The RSO series is available with isolation of 2kV or 3kV by chosing option "/H2"
or "/H3" in which case it is also ideal for medical applications which additionally require EN-60601-
1 certification.
Features:
- 2:1 and 4:1 Wide Input Voltage Ranges
- 1kVDC, 2kVD or 3kVDC Isolation
- UL94V-0 Package Material
- Certified for Medical Applications
- Continuous Short Circuit Protection
- Low Noise
- No External Capacitor needed
- Efficiency to 83%
Available Packaging
Package Qty:
22 per Tube
Package Style:
SIP-8
Mounting Method:
Through Hole
