Manufacturer Part #
2-6609115-2

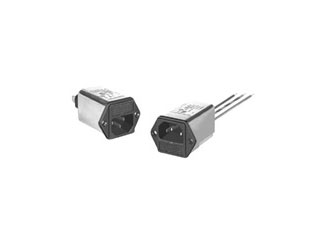

3 Position 250 VAC 6 A 1 Port EMI/RFI Filtered Power Entry Module
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:36 per Tray Mounting Method:Flange Mount | ||||||||||
| Date Code: | |||||||||||
TE Connectivity 2-6609115-2 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of ChangesAs part of strategic initiative , we are expanding our supply chain of the below listed Corcom filter part numbers with ADDITIONAL manufacturing location in Thailand. The production from the new plant starts tentatively in Nov-Dec 2025. The affected part numbers have no impact on form, fit and function. Effective dates can be found in the below tableReason for Changes:With the acquisition of Schaffner in Dec 2023, TE Connectivity has decided to strengthen the reliability and flexibility of the supply chain - this initiative will help us to serve our customer better with attractive lead times and seamless delivery.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=2-6609115-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/electromechanical--power-supplies--power-filters/2-6609115-2-te-connectivity-2299279
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=2-6609115-2&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/electromechanical--power-supplies--power-filters/2-6609115-2-te-connectivity-2299279
TE Connectivity 2-6609115-2 - Technical Attributes
| Application: | AC |
| Type: | Filtered / Unfiltered |
| Rated Current: | 6A |
| Mounting Method: | Flange Mount |
Features & Applications
The 2-6609115-2 is a part of 2-6609 series 6 A power filter.
Features:
- Product Type Features:
- Product Type = Filter - EMI/RFI
- Filter Type = Power Entry
- Series = GG (1-6 Amp)
- Type of Connector = IEC 320/C-14
- Termination Features:
- Terminal Input - Output Combination = IEC - 1/4" Faston
- Electrical Characteristics:
- Current Rating (A) = 6
- Voltage = (VAC) = 250
- Leakage Current (Line-to-Ground) Max. @ 120 VAC 60 Hz (µA) = 0.42
- Leakage Current (Line-to-Ground) Max. @ 250 VAC 50 Hz (µA) = 0.25
- Body Features:
- Mount Style = Flanged
- Operation/Application:
- Application = General Purpose
- Configuration Features:
- Fuse Options = Single
- Fuse Holder Type = Metric
Available Packaging
Package Qty:
36 per Tray
Mounting Method:
Flange Mount
