Référence fabricant
1393219-3

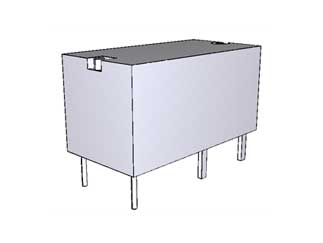

5 VDC 5 A SPDT Through Hole Schrack Miniature PCB Relay
| | |||||||||||
| | |||||||||||
| Nom du fabricant: | TE Connectivity | ||||||||||
| Emballage standard: | Product Variant Information section Emballages disponiblesQté d'emballage(s) :25 par Tube Méthode de montage :PCB Mount | ||||||||||
| Code de date: | 2325 | ||||||||||
TE Connectivity 1393219-3 - Spécifications du produit
Informations de livraison:
ECCN:
Informations PCN:
Description of ChangesThe following part numbers are being modified by changing the outside cover color from orange to natural. While both materials have the same characteristics, the same tests according to UL, VDE and CQC are passed. The Relay form (dimensions), features and rantings keep unchanged.Reason for Changes:Dear customer, to ensure a consistently high quality and to ensure the delivery capability we intend to change the current plastic material of the Cover. These parts are affected by the change mentioned above!
Description of Changes:Dear customer, this PCN is a correction of PCN-22-125558 as we do not make use of a white adhesive but have qualified an orange adhesive. The reason for the change keeps the same: To keep aligned with the regulations of RoHS not just for the finished relay but also throughout the complete process of production we change the sealing adhesive. The following qualification tests did not show any difference to the current adhesive: contact compatibility test, thermal endurance, mechanical endurance, relay tightness test. Please ignore original PCN-22-125558Reason for Changes:RoHS compliance throughout the complete process.
Statut du produit:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=1393219-3&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/fr/p/electromechanical--relays--power-relays/1393219-3-te-connectivity-6929418
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=fr&field2=1393219-3&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/fr/p/electromechanical--relays--power-relays/1393219-3-te-connectivity-6929418
TE Connectivity 1393219-3 - Caractéristiques techniques
| Relay Type: | General Purpose |
| Coil Type: | Non-Latching |
| Contact Form: | SPDT (1 Form C) |
| Nominal Coil Voltage: | 5V |
| Contact Current-Max: | 5A |
| Coil Resistance: | 125Ω |
| Switching Voltage: | 400V |
| Contact Material: | Silver Nickel (AgNi) |
| Operating Temp Range: | -40°C to +85°C |
| Height - Max: | 10mm |
| Termination Style: | PC Pin |
| No of Terminals: | 4 |
| Méthode de montage : | PCB Mount |
Fonctionnalités et applications
The 1393219-3 is a PE Series 5 A SPDT 5 VDC PCB Mount Miniature General Purpose Power Relay.
Features:
- Contact - Rated Current (A) = 5
- Coil Resistance (?) = 125
- Coil - Rated Power (mW) = 200
- Actuating System = DC
- Coil - Rated Power (W) = 0.20
- Input Voltage (VDC) = 5
- Insulation - Clearance/Creepage = 3.2mm Clearance 4.0mm Creepage
- Polarized = No
- Enclosure Color = Orange
- Relay Type = Miniature PCB Relay
- Mounting Options = PC Board
- Enclosure Type = Flux-Tight
- Contact Base Material = Silver Nickel 90/10
- Number of Poles = 1
- Number of Coils = 1
Applications:
- Industrial electronics
- White goods
- Measurement and control
Emballages disponibles
Qté d'emballage(s) :
25 par Tube
Méthode de montage :
PCB Mount
