Manufacturer Part #
1393219-6

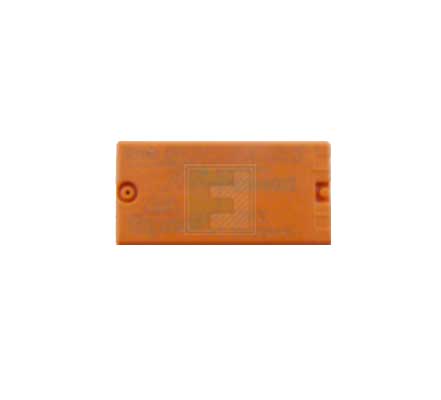

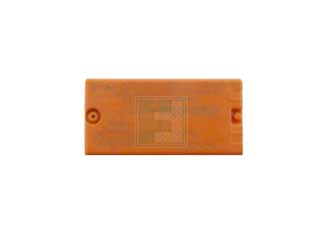

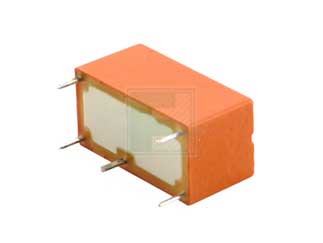

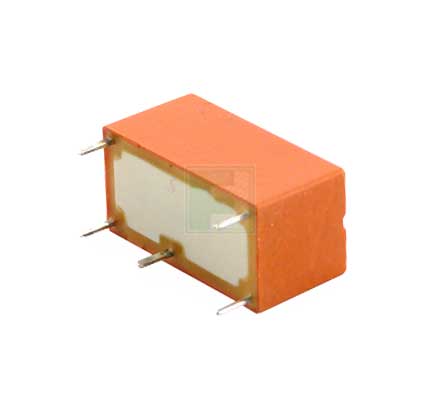

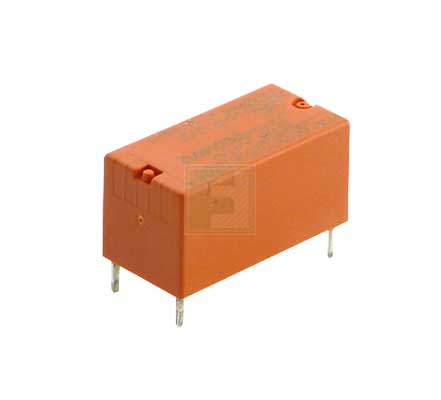

5 A SPDT 12 VDC PCB Mount Miniature General Purpose Power Relay PE014012
| | |||||||||||
| | |||||||||||
| Mfr. Name: | TE Connectivity | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:25 per Tube Mounting Method:PCB Mount | ||||||||||
| Date Code: | 2405 | ||||||||||
TE Connectivity 1393219-6 - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of ChangesThe following part numbers are being modified by changing the outside cover color from orange to natural. While both materials have the same characteristics, the same tests according to UL, VDE and CQC are passed. The Relay form (dimensions), features and rantings keep unchanged.Reason for Changes:Dear customer, to ensure a consistently high quality and to ensure the delivery capability we intend to change the current plastic material of the Cover. These parts are affected by the change mentioned above!
Description of Changes:Dear customer, this PCN is a correction of PCN-22-125558 as we do not make use of a white adhesive but have qualified an orange adhesive. The reason for the change keeps the same: To keep aligned with the regulations of RoHS not just for the finished relay but also throughout the complete process of production we change the sealing adhesive. The following qualification tests did not show any difference to the current adhesive: contact compatibility test, thermal endurance, mechanical endurance, relay tightness test. Please ignore original PCN-22-125558Reason for Changes:RoHS compliance throughout the complete process.
General Product Description: PE series relay - Cover material changeDescription of ChangesDear customer, to ensure a consistently high quality and to ensure the delivery capability we intend to change the current plastic material of the Cover. While both materials have the same characteristics, passed the same tests and are UL, VDE, CQC certified, the new material color appears slightly lighter. The Relay form (dimensions), features and rantings keep unchanged.First Ship Date of Changed Items (Changed Parts Only):01-APR-2023
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1393219-6&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--power-relays/1393219-6-te-connectivity-5451984
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=1393219-6&field4=TE Connectivity&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--power-relays/1393219-6-te-connectivity-5451984
TE Connectivity 1393219-6 - Technical Attributes
| Contact Form: | SPDT (1 Form C) |
| Nominal Coil Voltage: | 12V |
| Contact Current-Max: | 5A |
| Termination Style: | PC Pin |
| Mounting Method: | PCB Mount |
Features & Applications
The 1393219-6 is a part of 1393 series 5 A SPDT power relays.
Features:
- Product Type Features:
- Series = PE
- Termination Type = Through Hole
- Electrical Characteristics:
- Contact - Rated Current (A) = 5
- Coil Resistance (?) = 685
- Coil - Rated Power (mW) = 200
- Actuating System = DC
- Coil - Rated Power (W) = 0.20
- Input Voltage (VDC) = 12
- Insulation - Initial Dielectric Between Contacts and Coil (V rms) = 4000
- Insulation - Tracking Index of Relay Base = PTI250
- Coil Rating = Super Sensitive
- Release/Reset Voltage (V) = 1.2
- Contact Features:
- Relay Type = Miniature PCB Relay
- Mounting Options = PC Board
- Enclosure Type = Flux-Tight
- Contact Base Material = Silver Cadmium Oxide
- Approx. Dimensions (L x W x H) (mm [in]) = 20.0 x 10.0 x 10 [.787 x .393 x 393]
- Contact Configuration = Single
- Pin Configuration = Industry Standard
- Terminal Assignment = 1 Form A
- Number of Poles = 1
Applications:
- Industrial electronics
- White goods
- Measurement and control
Available Packaging
Package Qty:
25 per Tube
Mounting Method:
PCB Mount
