Manufacturer Part #
AQZ404

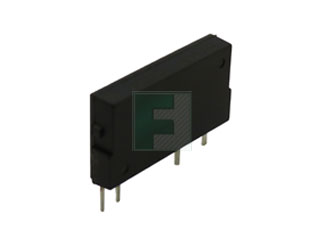

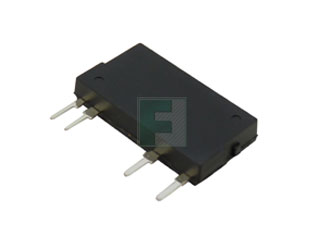

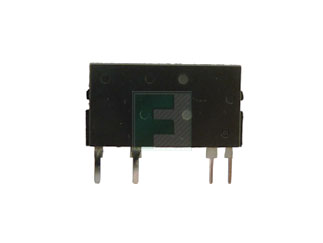

AQZ Photomos Series 0.5 A 400 V 4 Ohm 1 Channel Solid State Relay - SIL-4
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Panasonic Industry | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:25 per Tube Package Style:SIP-4 | ||||||||||
| Date Code: | 2328 | ||||||||||
Product Specification Section
Panasonic Industry AQZ404 - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
File
Date
Specification Change
10/14/2025 Details and Download
Certification Status
10/15/2024 Details and Download
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=AQZ404&field4=Panasonic Industry&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--solid-state-relays/aqz404-panasonic-4655924
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=AQZ404&field4=Panasonic Industry&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--solid-state-relays/aqz404-panasonic-4655924
Panasonic Industry AQZ404 - Technical Attributes
Attributes Table
| Contact Form: | SPST (1 Form B) |
| No of Channels: | 1 |
| Output Voltage: | 0V to 400V |
| On-state Resistance-Max: | 4Ω |
| Input Voltage: | 1.16V |
| Input Current: | 1A |
| Contact Current-Max: | 500mA |
| Isolation Voltage-RMS: | 2500V |
| Capacitance: | 1.5pF |
| Turn-on Delay Time: | 0.8ms |
| Turn-off Delay Time: | 3.9ms |
| Operating Temp Range: | -40°C to +85°C |
| Package Style: | SIP-4 |
Features & Applications
The AQZ404 is a Part of AQZ Series 400 V 0.5 A 4 Ohm 1 Form B Photomos Solid State Relay available in SIL-4 Package
Features:
- High sensitivity and low onresistance
- Normally closed (1 Form B) contact
- Slim SIL4-pin package
- Sockets are also available
- PA1a-PS
- PA1a-PS-H
- Can be installed on the RT-3 relay
Applications:
- Railroad system, traffic signals
- Measuring instruments
- Industrial machines?
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
14 Weeks
Quantity
Unit Price
1
$5.61
5
$5.57
20
$5.50
40
$5.46
100+
$5.38
Product Variant Information section
Available Packaging
Package Qty:
25 per Tube
Package Style:
SIP-4
