Manufacturer Part #
LCB127S

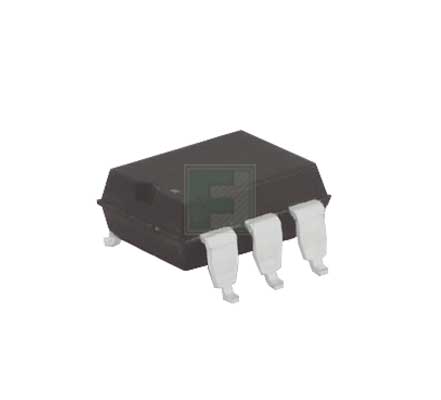

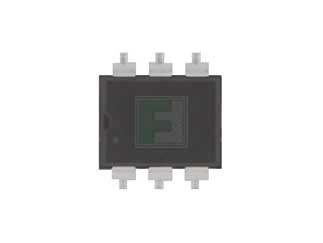

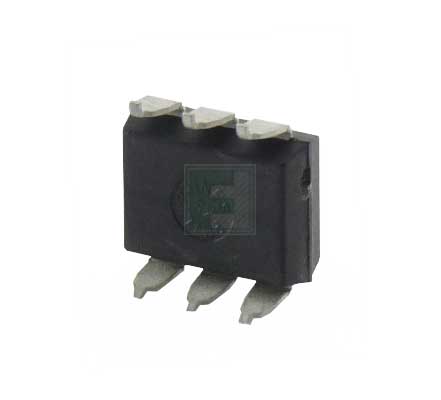

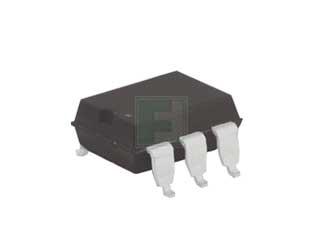

LCB127 Series SPST 200 mA 250 V Single Channel Solid State Relay SMT - DIP-6
| | |||||||||||
| | |||||||||||
| Mfr. Name: | Littelfuse | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:50 per Tube Package Style:SMD-6 Mounting Method:Surface Mount | ||||||||||
| Date Code: | |||||||||||
Littelfuse LCB127S - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description:Following the PCN EIC-1138, dated July 31st, 2024- Littelfuse IXYS Integrated Circuits Division (ICD) would like to inform you about additional pat numbers affected by this change.As a result, we need to remove the UL 94 V-0 flammability rating from the datasheets for the part numbers.Littelfuse would like to inform you that although components shipped from Littelfuse are considered to not have a UL 94 V-0 flammability rating, they remain fully compliant with the certifications outlined in their respective data sheets.
Additional Epoxy Mold Compound Qualification for 6L DIP devices:Detailed Description of Change:Littelfuse IXYS Integrated Circuits Division (ICD) would like to inform you about the qualification of an additional EMC (Epoxy Mold Compound) to ensure security of supply for the part numbers summarized in the table of the attached notice.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=LCB127S&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--solid-state-relays/lcb127s-littelfuse-1061761
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=LCB127S&field4=Littelfuse&field18=https://p1na.futureelectronics.com/p/electromechanical--relays--solid-state-relays/lcb127s-littelfuse-1061761
Littelfuse LCB127S - Technical Attributes
| Contact Form: | SPST (1 Form B) |
| Output Voltage: | 250V |
| On-state Resistance-Max: | 10Ω |
| Input Voltage: | 1.2V |
| Input Current: | 50mA |
| Contact Current-Max: | 200mA |
| Isolation Voltage-RMS: | 3750V |
| Capacitance: | 50pF |
| Operating Temp Range: | -40°C to +85°C |
| Package Style: | SMD-6 |
| Mounting Method: | Surface Mount |
Available Packaging
Package Qty:
50 per Tube
Package Style:
SMD-6
Mounting Method:
Surface Mount
