Manufacturer Part #
220AMA04R

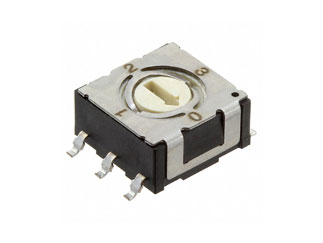

Dip Switch SP4T 4 Position Surface Mount Rotary for Tool Actuator 100mA 50VDC
| | |||||||||||
| | |||||||||||
| Mfr. Name: | CTS | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:1000 per Reel Mounting Method:Surface Mount | ||||||||||
| Date Code: | 2537 | ||||||||||
CTS 220AMA04R - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description:CUSTOMER NOTICE OF PRODUCTION CONSOLIDATION220 and 221 Rotary Switches To better serve our customers, there is going be a consolidation of the operations and productions of our two Rotary Switches product lines - Series 220 and 221. During the consolidation, there will be no production and delivery of the impacted products from the 1st of September 2025 to 31st of October 2025. If you wish to receive parts before the consolidation, the last day to take orders 31st of May 2025. Any orders received after 1st June 2025, will have deliveries starting from November 2025 onwards.Affected Dates: 1st of September 2025 to 31st of October 2025
Description:To better serve our customers, there is going be a consolidation of the operations and productions of our two Rotary Switches product lines - Series 220 and 221. During the consolidation, there will be no production and delivery of the affected products from the 1st of January 2025 to the 30th of April 2025. If you wish to receive parts before the consolidation the last day of accepting orders is the 31st of October 2024. Any orders received after 31st October 2024 will have deliveries starting from 1st of May 2025 onwards.
CUSTOMER NOTICE OF PRODUCTION CONSOLIDATIONAffected Product Series:220 and 221 Rotary Switches To better serve our customers, there is going be a consolidation of the operations and productions of our two Rotary Switches product lines - Series 220 and 221. During the consolidation, there will be no production and delivery of the affected products from the 1st of January 2025 to the 30th of April 2025. If you wish to receive parts before the consolidation the last day of accepting orders is the 31st of October 2024. Any orders received after 31st October 2024 will have deliveries starting from 1st of May 2025 onwards.Affected Dates: 1st of January 2025 to 30th of April 2025Notes: No production and delivery for the affected product series during the affected period.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=220AMA04R&field4=CTS&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--dip-switch/220ama04r-cts-7105214
-
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=220AMA04R&field4=CTS&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--dip-switch/220ama04r-cts-7105214
CTS 220AMA04R - Technical Attributes
| Type: | Dip |
| No of Positions: | 4 |
| Circuitry: | SP4T |
| Actuator Style: | Flush |
| Termination Style: | Gull Wing |
| Sealed Option: | Sealed |
| Contact Resistance: | 100mΩ |
| Voltage Rating: | 50V |
| Current Rating: | 100mA |
| Insulation Resistance: | 1000MΩ |
| Terminal Pitch: | 2.54mm |
| Operating Temp Range: | -40°C to +85°C |
| Moisture Sensitivity Level: | 1 |
| Mounting Method: | Surface Mount |
Available Packaging
Package Qty:
1000 per Reel
Mounting Method:
Surface Mount
