Manufacturer Part #
LP11OA1TBSRG

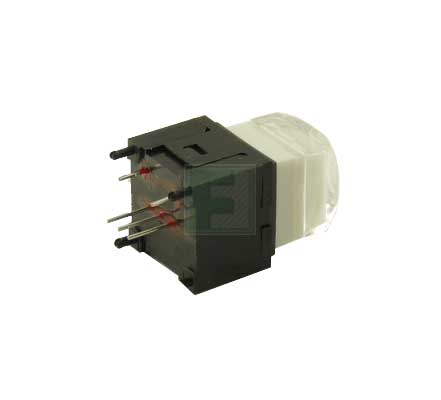

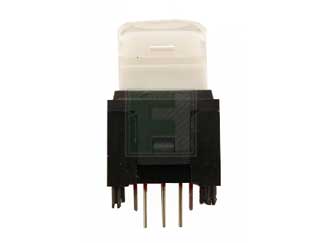

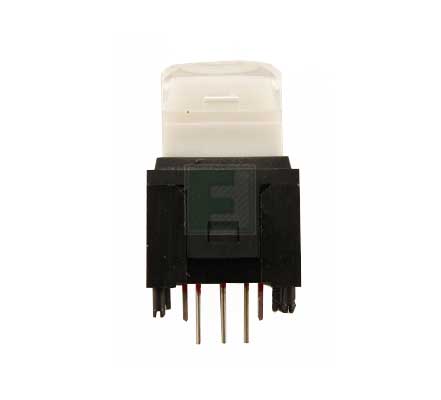

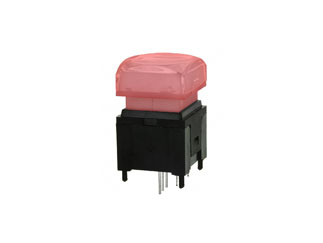

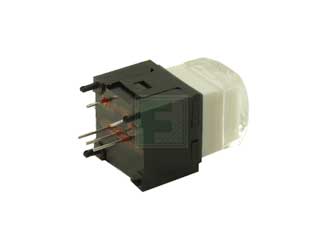

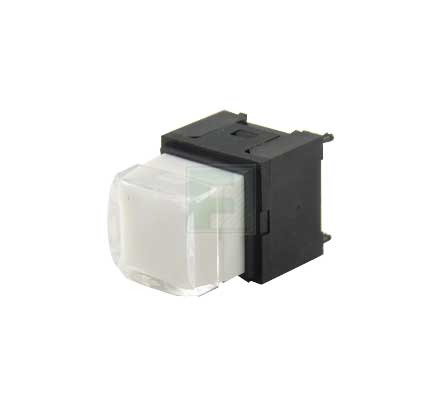

LP11 Series SPST Off-Momentary Red-Green LED Illuminated Pushbutton Switch
| | |||||||||||
| | |||||||||||
| Mfr. Name: | E-Switch | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:64 per Bulk Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
E-Switch LP11OA1TBSRG - Product Specification
Shipping Information:
ECCN:
PCN Information:
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=LP11OA1TBSRG&field4=E-Switch&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--pushbutton/lp11oa1tbsrg-e-switch-8318180
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=LP11OA1TBSRG&field4=E-Switch&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--pushbutton/lp11oa1tbsrg-e-switch-8318180
E-Switch LP11OA1TBSRG - Technical Attributes
| Rated Voltage: | 12V |
| Contact Current-Max: | 100mA |
| Switch Operation: | Off-Mom |
| Circuitry: | SPST |
| Insulation Resistance: | 100MΩ |
| Illumination Color: | Red / Green |
| Cap Color: | Clear |
| Actuator Style: | Plunger |
| Termination Style: | PC Pin |
| Operating Temperature: | -20°C to +70°C |
| Contact Plating: | Gold |
| Mounting Method: | Through Hole |
Features & Applications
With a continuously expanding product offering, E-Switch has built a reputation for total customer satisfaction. E-Switch emphasizes quality through efficiency, in both the design and manufacturing process, allowing for exceptional quality product at competitive prices.
The latest illuminated pushbutton switch from E-Switch, the LP11, has many available options. You can get it with a tactile or non tactile feel. It comes with multiple cap sizes and LED color combinations.
This switch is perfectly suited to applications in the computer servers, peripherals, performance audio, instrumentation, telecommunications/networking and more.
The LP11OA1TBSRG is a single pull, single throw, illuminated pushbutton switch with a momentary on/off function. The LP11OA1NASRG has a tactile feel with a 15 mm square cap. The LEDs are red and green in this switch.
Available Packaging
Package Qty:
64 per Bulk
Mounting Method:
Through Hole
