Manufacturer Part #
SB4011NOH-2C

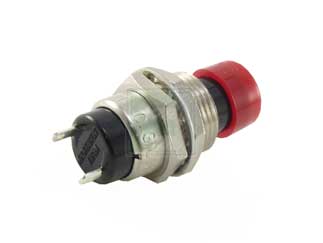

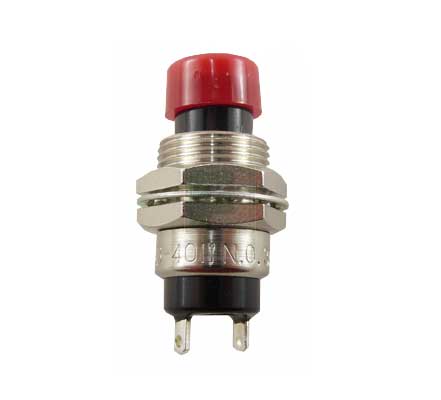

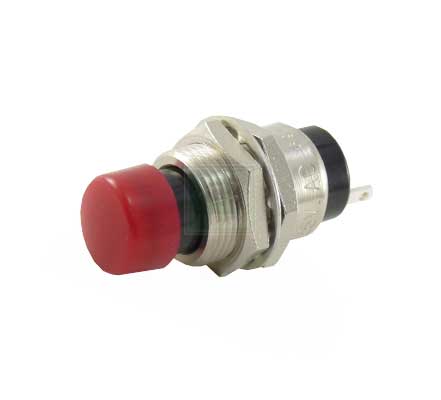

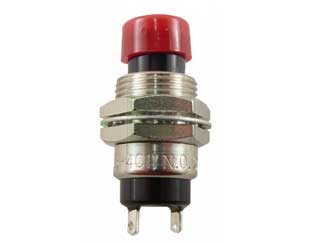

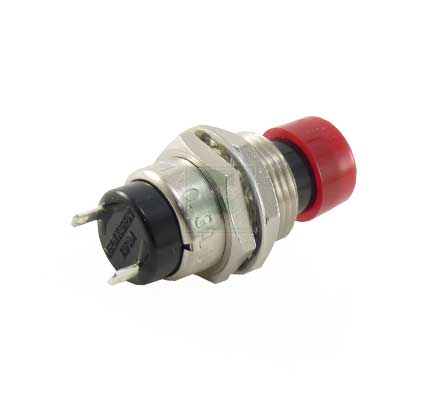

SB Series SPST Off-Momentary Panel Mount Solder Lug Pushbutton Switch
| | |||||||||||
| | |||||||||||
| Mfr. Name: | NKK Switches | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:50 per Bag Mounting Method:Panel Mount | ||||||||||
| Date Code: | |||||||||||
NKK Switches SB4011NOH-2C - Product Specification
Shipping Information:
ECCN:
PCN Information:
Description of Change:There will be a revision to the epoxy seal applied at the base of terminals for JW Series Rockers, EB, FB, and SB Series Pushbuttons, SK Series Keylocks, and CS Series Slides. The new epoxy seal will be matte black in color, and the change will include both standard and custom switches.
Description and Reason for Change:There will be a revision to the epoxy seal applied at the base of terminals for JW Series Rockers, EB, FB, and SB Series Pushbuttons, SK Series Keylocks, and CS Series Slides. The new epoxy seal will be matte black in color, and the change will include both standard and custom switches. Changes for epoxy seal on JW, EB, FB, SB, SK and CS Series will be effective September 2025. However, the end of sales date may be subject to change if orders exceed expectations for the specified products.
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SB4011NOH-2C&field4=NKK Switches&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--pushbutton/sb4011noh-2c-nkk-switches-7129471
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=SB4011NOH-2C&field4=NKK Switches&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--pushbutton/sb4011noh-2c-nkk-switches-7129471
NKK Switches SB4011NOH-2C - Technical Attributes
| Contact Current-Max: | 3A |
| Switch Operation: | Off-Mom |
| Circuitry: | SPST |
| Actuator Style: | Round Button |
| Termination Style: | Solder Lug |
| Mounting Method: | Panel Mount |
Features & Applications
The SB4011NOH-2C-RO is a SPST Off-Momentary Panel Mount Solder Lug Push Button Switch.
The SB series switches have internal antijamming feature to protect the contacts from damage due to excessive force on the plunger.
Features:
- Optional caps in different colors to vary appearance as needed
- Low operating force for ease of actuation
- Rear panel bushing mount with compact behind panel dimension
- Low cost device of rugged one-piece bushing and housing construction
- Epoxy sealed terminals
- Power Level : 3 A @ 125 V AC & 2 A @ 250 V AC or 2 A @ 30 V DC
- Logic Level : 0.4 VA maximum @ 28 V AC/DC maximum
- Operating Temp Range: –10°C through +70°C (–14°F through +158°F)
Available Packaging
Package Qty:
50 per Bag
Mounting Method:
Panel Mount
