Manufacturer Part #

LRA22H2FBBNN

LR Series 10 A SPST On-Off Panel Mount Quick Connect Rocker Switch

Mfr. Name: ZF Electronics
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
Technical Attributes
Attributes Table
Switch Operation: On-Off
Circuitry: SPST
Current Rating: 10A
Termination Style: Quick Connect
Contact Material: Silver
Mounting Method: Panel Mount
Features & Applications

Cherry is a global leader in the design, development and manufacture of Snap Action Switches, Rocker Switches, Keyboards and Sensors.  Taking pride in the company’s vigorous innovation policy and superior customer service guidelines, product performance meets the highest standards for quality, reliability and durability.  Utilizing the latest design automation tools and in-house prototyping systems, Cherry offers the rapid designs and working prototypes for your application.

The LR Series of Miniature Rocker Switches are offered with a 10 amp current rating with single and double pole configurations.   This economical rocker switch is available in a wide variety of colors and actuator marking with lighted or non-lighted versions.

Typical applications for the LR Series include:

  • Medical and Dental Equipment
  • Small Appliances
  • Vending Machines
  • Power Supplies
  • Surge Protectors

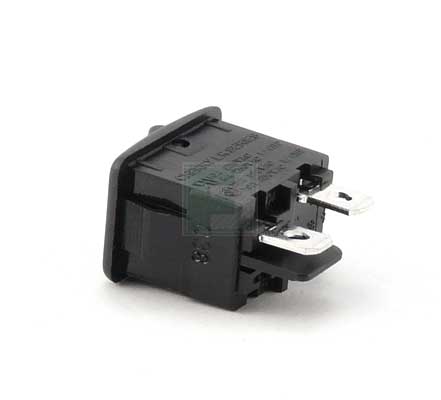

The LRA22H2FBBNN is rated at 10 amps with single pole, single throw (SPST) switch operation and On-Off function.  This is a non-lighted switch with black housing and actuator and with -/O markings on the curved rocker. Termination is straight 4.8mm (0.187”) quick connect.

Pricing Section
Stock:
0
Minimum Order:
1,000
Multiple Of:
100
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
N/A
Total
$715.00
USD
Quantity
Web Price
100
$0.86
200
$0.735
400
$0.72
500
$0.715
1,500+
$0.69
