Manufacturer Part #
19001-04UL

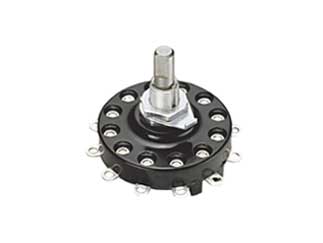

19 Series 4 Position Deck Rotary Switches w/ Solder Terminal
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | Grayhill | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:1 per Box |
||||||||||
| Date Code: | |||||||||||
Grayhill 19001-04UL - Product Specification
Shipping Information:
HTS Code:
ECCN:
PCN Information:
Plating material change on rotary and push button switchesDescription of Change: Grayhill is changing the Tin/Zinc plating to Sulfamate Nickel plating on all standard rotary and push button switches.Reason for Change: This change improves the control of process variation of the plating process by limiting the elements involved and improving the overall appearance of the products.
Part Status:
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=19001-04UL&field4=Grayhill&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--rotary/19001-04ul-grayhill-2567030
-
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=19001-04UL&field4=Grayhill&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--rotary/19001-04ul-grayhill-2567030
Grayhill 19001-04UL - Technical Attributes
| Indexing: | 30° |
| No of Positions: | 2 |
| Contact Style: | Non-Shorting |
| Termination Style: | Faston |
| Contact Material: | Silver |
Features & Applications
The 19 Series Rotary Switch, Solder terminals, 4 positions.
Key Features:
- 1/2" Button Centers
- Flange Mounted
- Top Surface or Sub Surface Mounting
- Snap-Dome Contact Provides Positive Feedback
Specifications:
- Rated: UL Recognition: File Number E35289 15 Amps, 120 Vac, non-inductive load. One Amp, 120 Vdc, non-inductive load. Additional Grayhill Rating: 7.5 Amps, 220 Vac, non-inductive load
- This rating is based on the following criteria:
- Overload—50 operations at 125% rated ac load and 150% rated DC load
- Endurance—6000 operations at rated load with 900 Vac dielectric strength before and after test
- Temperature Rise—Not to exceed 30°C when carrying rated ac load after endurance test
- Contacts will carry 20 Amps at 115 volts AC with 30°C maximum temperature rise
- Contact Resistance: (Measured at 2 Vdc and approximately 100 mA) for new switch approximately 10 milliohms
- Insulation Resistance: Approximately 100,000 Mohms. Between mutually insulated parts
- Voltage Breakdown: Approximately 2500 Vac between mutually insulated parts
Available Packaging
Package Qty:
1 per Box
