Manufacturer Part #
EG2201A

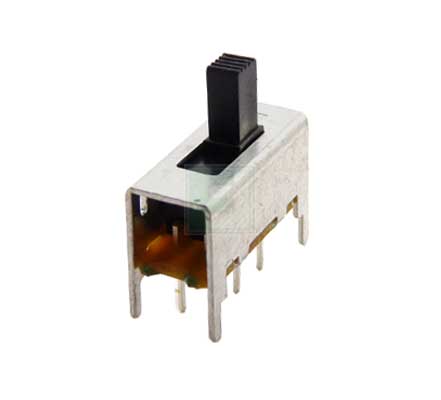

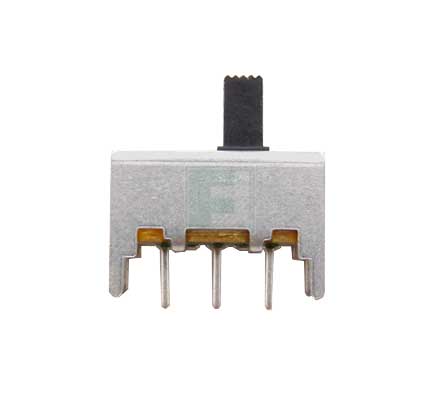

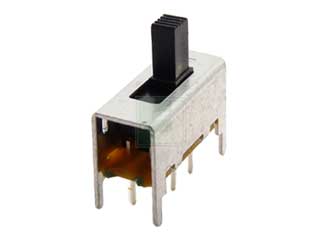

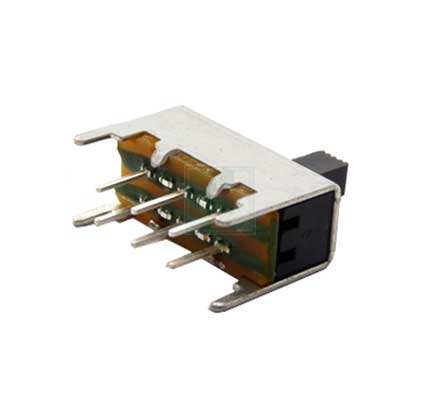

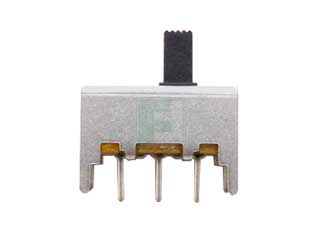

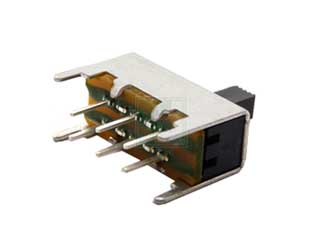

EG Series DPDT On-On Vertical Through Hole Slide Switch
|
|
|||||||||||
|
|
|||||||||||
| Mfr. Name: | E-Switch | ||||||||||
| Standard Pkg: |
Product Variant Information section
Available PackagingPackage Qty:300 per Bulk Mounting Method:Through Hole |
||||||||||
| Date Code: | 2543 | ||||||||||
Product Specification Section
E-Switch EG2201A - Product Specification
Shipping Information:
Item cannot ship to certain countries.
See List
Item cannot ship to following countries:
China
HTS Code:
8536.50.90.50
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=EG2201A&field4=E-Switch&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--slide/eg2201a-e-switch-8552937
-
https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=EG2201A&field4=E-Switch&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--slide/eg2201a-e-switch-8552937
E-Switch EG2201A - Technical Attributes
Attributes Table
| Actuator Style: | Standard |
| Switch Operation: | On-On |
| Circuitry: | DPDT |
| Voltage Rating: | 30V |
| Contact Current-Max: | 0.2A |
| Insulation Resistance: | 100Ω |
| Contact Resistance: | 20mΩ |
| Contact Material: | Silver Over Copper |
| Contact Plating: | Silver |
| Termination Style: | Vertical |
| Dielectric Withstanding Voltage: | 500V |
| Operating Temperature: | -20°C to +70°C |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
2,217
USA:
2,217
Factory Lead Time:
14 Weeks
Quantity
Unit Price
40
$0.55
100
$0.54
200
$0.53
400
$0.52
1,000+
$0.50
Product Variant Information section
Available Packaging
Package Qty:
300 per Bulk
Mounting Method:
Through Hole
