Manufacturer Part #
ES01MAVBE

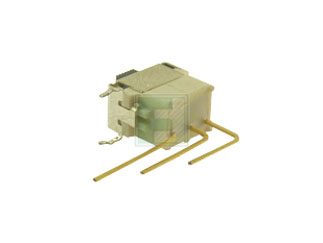

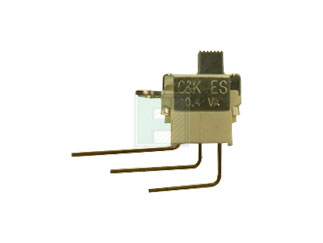

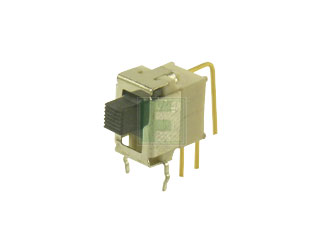

ES Series Tiny Sealed SPDT On-None-On Right Angle Through Hole Slide Switch
| | |||||||||||
| | |||||||||||
| Mfr. Name: | C&K | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:80 per Bulk Mounting Method:Through Hole | ||||||||||
| Date Code: | |||||||||||
Product Specification Section
C&K ES01MAVBE - Product Specification
Shipping Information:
Item cannot ship to certain countries. See List
Item cannot ship to following countries:
ECCN:
EAR99
PCN Information:
N/A
File
Date
Part Status:
Active
Active
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=ES01MAVBE&field4=C&K&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--slide/es01mavbe-c&k-9131939
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=ES01MAVBE&field4=C&K&field18=https://p1na.futureelectronics.com/p/electromechanical--switches--slide/es01mavbe-c&k-9131939
C&K ES01MAVBE - Technical Attributes
Attributes Table
| Actuator Style: | Standard |
| Switch Operation: | On-None-On |
| Circuitry: | SPDT |
| Rated Voltage (VAC): | 20VAC |
| Voltage Rating: | 20V |
| Insulation Resistance: | 1000MΩ |
| Contact Resistance: | 50mΩ |
| Contact Material: | Gold Over Nickel |
| Contact Plating: | Gold |
| Termination Style: | Right Angle / PC Through Hole |
| Dielectric Withstanding Voltage: | 500V |
| Operating Temperature: | -30°C to +85°C |
| Mounting Method: | Through Hole |
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Lead Time:
21 Weeks
Quantity
Unit Price
1
$6.03
5
$5.98
20
$5.90
40
$5.86
100+
$5.78
Product Variant Information section
Available Packaging
Package Qty:
80 per Bulk
Mounting Method:
Through Hole
