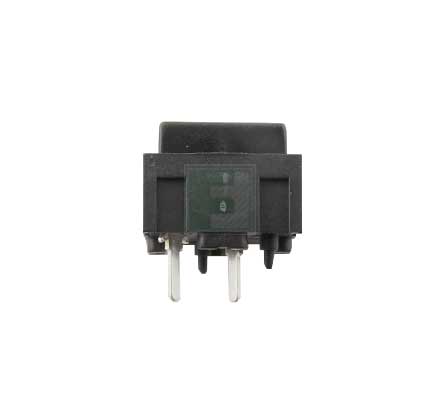

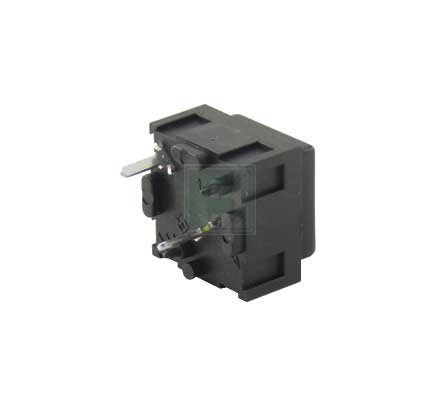

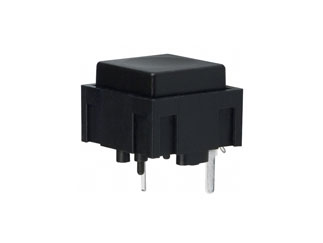

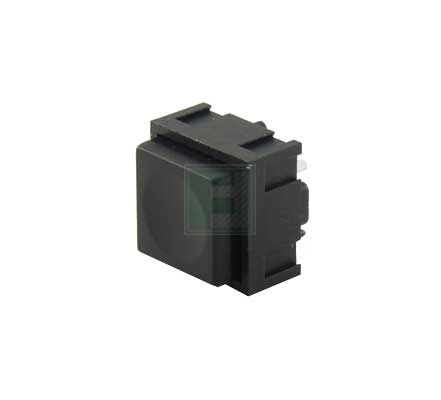

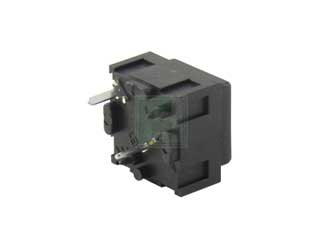

Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

320E11BLK

320 Series SPST 1.35 N Black Square Button Through Hole Tactile Switch

320E11BLK Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free Library Loader. Learn more about ECAD model.
Mfr. Name:	E-Switch
Standard Pkg:	Product Variant Information section Available Packaging Package Qty: 162 per Tray Mounting Method: Through Hole
Date Code:	2441

E-Switch 320E11BLK - Technical Attributes

Switch Operation:	Off-Mom
Circuitry:	SPST N.O.
Voltage Rating:	50V
Current Rating:	25mA
Insulation Resistance:	1000MΩ
Actuation Force:	1.35N
Contact Material:	Silver Over Copper
Contact Plating:	Silver
Actuator Style:	Square Button
Termination Style:	PCB
Dielectric Withstanding Voltage:	500V
Operating Temperature:	-20°C to +70°C
Dimension:	L 12.4mm x W 12.4mm
Mounting Method:	Through Hole

Expand List

Collapse List

Features & Applications

With a continuously expanding product offering, E-Switch has built a reputation for total customer satisfaction. E-Switch emphasizes quality through efficiency, in both the design and manufacturing process, allowing for exceptional quality product at competitive prices.

The 320 series switch from E-Switch offers a variety of tactile switches. This series is available with a wide range of features and benefits such as multiple cap color options, high reliability dome technology as well as excellent tactile feedback.

The 320 series switch is ideal for a number of different applications and markets, including:

Telecommunications
Instrumentation
Networking
Computer/servers
Performance audio
Low power on/off designs
External hard drives and modems

The 320E11BLK is a SPST thru hole tactile switch with a black 320 style cap with a gold over stainless steel dome contact.
