E-Switch | 100SP1T2B3M1QEH

Manufacturer Part #

100SP1T2B3M1QEH

100 Series SPDT On-None-On Through Hole Miniature Toggle Switch

ECAD Model:
Mfr. Name: E-Switch
Standard Pkg:
Product Variant Information section
Date Code:
Product Specification Section
E-Switch 100SP1T2B3M1QEH - Technical Attributes
Attributes Table
Switch Operation: On-None-On
Circuitry: SPDT
Contact Material: Silver
Actuator Type: Toggle
Bushing Style: Threaded
Mounting Method: Through Hole
Features & Applications

The 100 Series miniature toggle switches offer numerous actuator options and termination options including right angle PC mount.

Features:

  • Up to 4 poles available
  • Variety of switching functions
  • Miniature
  • Multiple actuator & bushing options

Applications:

  • Telecommunications
  • Instrumentation
  • Networking
  • Medical equipment
Pricing Section
Global Stock:
0
USA:
0
On Order:
0
Factory Stock:Factory Stock:
0
Factory Lead Time:
13 Weeks
Minimum Order:
288
Multiple Of:
96
Total
$449.28
USD
Quantity
Unit Price
288
$1.56
384
$1.55
480+
$1.53
Product Variant Information section
Related Products

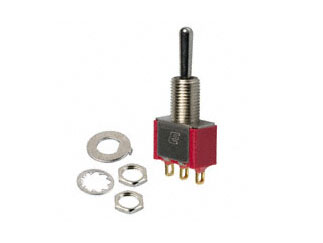

100SP1T1B1M1REH
100SP1T1B1M1REH
E-Switch
100 Series SPDT On-None-On Through Hole Miniature Toggle Switch
As low as: $1.65 (USD)
100DP1-SERIES-ESW-FN
100DP1T1B1M1REH
E-Switch
100 Series DPDT On-None-On Through Hole Miniature Toggle Switch
As low as: $2.24 (USD)
100-SERIES-ESW-FNT-M
100DP3T1B1M1QEH
E-Switch
100 Series DPDT On-Off-On Through Hole Miniature Toggle Switch
As low as: $2.38 (USD)

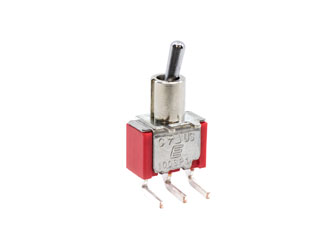

100SP1T2B4M6QE-ESW-F
100SP1T2B4M6QE
E-Switch
100 Series SPDT On-None-On Right Angle Miniature Toggle Switch
As low as: $2.08 (USD)

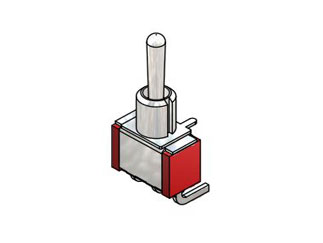

100SP3T1B4M6QE-ESW-F
