Image for illustration purposes only,
refer to technical specifications

Manufacturer Part #

HSLCS-CALCL-004

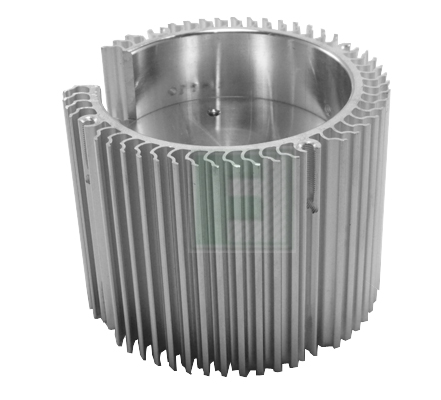

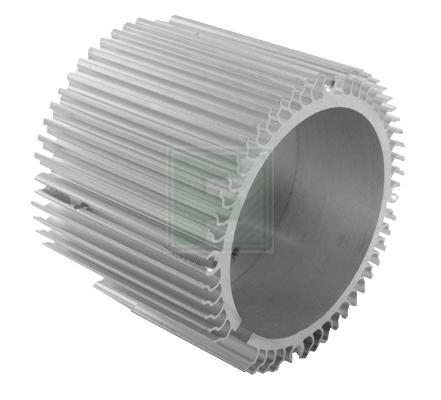

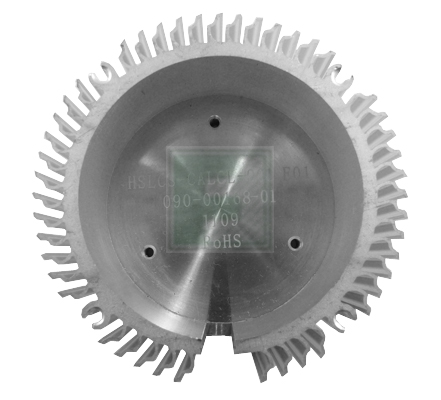

HSLCS Series Ø 74.5 x 76.9 mm 31 W Spotlight Cooler Osram Prevaled Heatsink

HSLCS-CALCL-004 Datasheet
ECAD Model: Convert this file for your ECAD tool by downloading the free. Learn more about ECAD model.
Mfr. Name:	Boyd
Standard Pkg:	Product Variant Information section Available Packaging Box BoxSelected Variant Qty: 500+ / Unit Price: $7.73 / Stock: 0 Qty: 60+$7.73 Stock: 0 Package Qty: 60 per Box Mounting Method: Flush Mount
Date Code:

Boyd HSLCS-CALCL-004 - Technical Attributes

Thermal Resistance:	1.2°C/W
Material:	Aluminum
Dimension:	H 76.9mm x D 74.5mm
Mounting Method:	Flush Mount

Features & Applications

The HSLCS-CALCL-004 is a SynJet cooling heatsink developed by Nuventix, Inc. for cooling a Philips Fortimo LED SLM spotlight module.

SynJet® Fanless Air Cooling technology provides the most reliable active cooling solution available today. The SynJet SLM Cooler product family is a highly reliable, adaptable and quiet active cooling solution for the solid state lighting industry. Specially designed to provide active cooling for a spotlight module, the SynJet SLM Cooler is configurable to three settings to match the luminaire design.

Key Features:

Lighter weight than passive solutions
Energy efficient
Quiet operation
Easy to design in for fastest time to market
Flexible design for smaller overall luminaires
Thermally engineered and designed specifically for Philips LED Modules
Philips LED drivers have a built in power connection for the SynJet for a Plug and Play solution
Cooling life is longer than the module or driver - does not limit luminaire usable life
One heat sink design can be used for higher and lower lumen offerings by coupling with a SynJet cooler

The HSLCS-CALCL-004 heatsink is designed to be used in conjunction with the Nuventix SSLCS family of Philips Fortimo LED SLM spotlight coolers (sold seperately).
