Manufacturer Part #
MODULED XTRA 9950-B

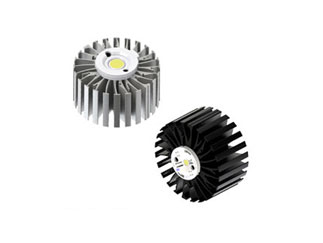

ModuLED XTRA 1.34 °C/W Black Anodized Zhaga LED Cooler (Ø 99 x 50 mm)
| | |||||||||||
| | |||||||||||
| Mfr. Name: | MechaTronix | ||||||||||
| Standard Pkg: | Product Variant Information section Available PackagingPackage Qty:18 per Box | ||||||||||
| Date Code: | |||||||||||
MechaTronix MODULED XTRA 9950-B - Product Specification
Shipping Information:
ECCN:
PCN Information:
Part Status:
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=MODULED XTRA 9950-B&field4=MechaTronix&field18=https://p1na.futureelectronics.com/p/electromechanical--thermal-management--heatsinks-accessories/moduled-xtra-9950-b-mechatronix-1070668
-
- https://futureelec.wufoo.com/forms/?formname=r8bzou01ws8brs&field12=NA&field16=en&field2=MODULED XTRA 9950-B&field4=MechaTronix&field18=https://p1na.futureelectronics.com/p/electromechanical--thermal-management--heatsinks-accessories/moduled-xtra-9950-b-mechatronix-1070668
MechaTronix MODULED XTRA 9950-B - Technical Attributes
| Thermal Resistance: | 1.34°C/W |
| Material: | Black Anodized |
| Dimension: | H 50mm x D 99mm |
Features & Applications
LED star cooler for spot and downlight designs from 1.600 to 3,500 lumen
Diameter 99mm - Height 50mm - Thermal resistance Rth 1.34°C/W
Modular design with mounting holes foreseen for direct connection of
- Zhaga Book 3 Spot Light Modules Edison Edilex SLM, Osram PrevaLED Core AC / AC PRO / Z3 / Z4, Philips Fortimo SLM, Sharp INTERMO, Tridonic Talexx Stark SLE G3 / G4, Vossloh Schwabe Luga Shop, ...
- Bridgelux BXRA ESR, Vero & Décor Vero 10/13/18/29, V-series
- Cree XLamp CXA13, CXB13, CXA15, CXB15, CXA18, CXB18, CXA25, CXB25
- Edison EdiPower II HM / HR / SD series
- GE Infusion M series, DLM series, NPM series
- Lumileds Luxeon COB's 1204, 1205, 1208, 1211, 1216, Luxeon K arrays K12, K16
- Lustrous LUSTRON 5 series X5 / DX5 / TX5 / XL5, LUSTRON 6 series LL613F, LL620F, LL660D
- Osram Soleriq P6, P9, P13, S13, S19, E30, E45
- Prolight Opto PACE, PACF, PACG, PABA, PACC, PACD Sharp Mega Zenigata, Tiger Zenigata, Mini Zenigata
- Vossloh Schwabe Luga Shop C 2016 DMC 124, 125, 128
Available Packaging
Package Qty:
18 per Box
